Start here

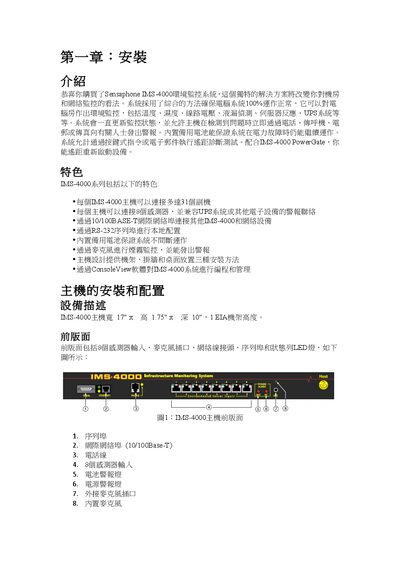

Sensaphone IMS-4000 Environmental Monitoring System Installation Guide
The IMS-4000 is a rack‑mountable environmental monitoring system that tracks temperature, humidity, voltage, liquid leaks, smoke, and more. It can be installed in a rack, on a wall, or on a desktop and supports up to 31 remote units and 8 sensors per host.
The guide explains hardware installation, power and battery indicators, sensor wiring, network configuration via RS‑232 or Ethernet, SNMP settings, and firmware requirements. It also provides detailed procedures for battery replacement and sensor installation for smoke and airflow modules. This manual is written in Chinese.
Sensaphone IMS-4000 specifications
| Operating Temperature | 32°F‑122°F (0°C‑50°C) |
|---|---|
| Operating Humidity | 5‑90% RH, no condensation |
| Power Input | 100‑250 V AC, 50‑60 Hz |
| Power Consumption | 25 W |
| Backup Battery | 12 V 2.9 AH sealed gel, ~3.5 h runtime |
Source: Sensaphone IMS-4000 Environmental Monitoring System Installation Guide
All Sensaphone IMS-4000 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How many sensor inputs does the IMS‑4000 support?
The IMS‑4000 host unit provides eight sensor inputs.
From: Sensaphone IMS-4000 Environmental Monitoring System Installation Guide
What is the default password for the IMS‑4000 console?
The default password is “ims4k”.
From: Sensaphone IMS-4000 Environmental Monitoring System Installation Guide
