Start here

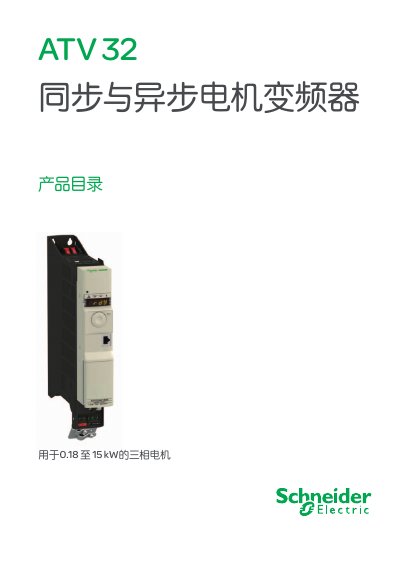

Schneider Electric ATV32 VFD Product Catalogue
The Schneider Electric ATV32 Variable Frequency Drive (VFD) is designed for three-phase asynchronous and synchronous motors ranging from 0.18 kW to 15 kW. It offers over 150 functions including integrated safety features like STO, SLS, and SS1, as well as various motor control configurations such as U/f, vector control, and sensorless synchronous motor control.
The drive is engineered for complex machinery applications in industries such as printing, material handling, packaging, textiles, woodworking, and metalworking. With a compact design starting at 45mm width, it supports flexible installation options including side-by-side mounting. It integrates with Schneider Electric's Lexium 32 motion control systems and offers connectivity via Modbus, CANopen, and other protocols through optional cards. This manual is written in Chinese.
Schneider Electric ATV32 specifications
| Product Series | ATV320 (Yuzhuo series) |
|---|---|
| Model Number | NVE41294 |
| Motor Compatibility | Asynchronous and synchronous motors |
| Document Date | March 2020 |
Source: Schneider Electric ATV320 NVE41294 VFD Installation Manual
All Schneider Electric ATV32 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What safety functions are integrated?
The drive includes STO (Safety Torque Off), SLS (Safe Limit Speed), and SS1 (Safe Stop 1).
Which communication protocols are supported?
Integrated options include Modbus and CANopen, with DeviceNet, PROFIBUS DP V1, EtherNet/IP, and others available as optional cards.
What is the intended use of this VFD?
The product is suitable for industrial applications using three-phase synchronous or asynchronous motors.
From: Schneider Electric ATV320 NVE41294 VFD Installation Manual
Who is authorized to install and maintain this equipment?
Only qualified personnel who have received safety training and understand the manual are permitted to perform installation, operation, maintenance, or repair.
From: Schneider Electric ATV320 NVE41294 VFD Installation Manual
