Start here

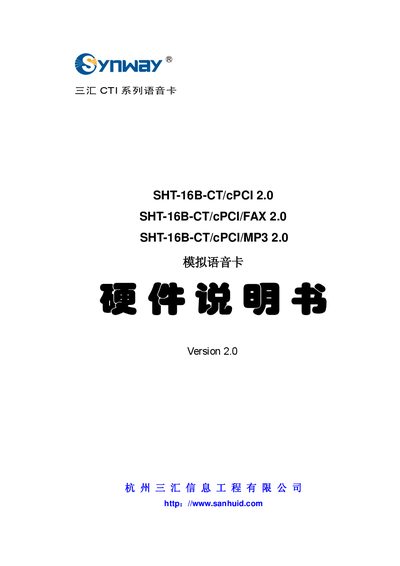

Three Exchange CTI series voice Card SHT-16B-CT/cPCI 2.0 SHT-16B-CT/cPCI/FAX 2.0 SHT-16B-CT/cPCI/MP3 2.0 Manual
The SHT-16B-CT/cPCI series voice cards are 16‑channel analog line cards that use a CompactPCI hot‑swap bus. They can be configured with various functional modules to provide standard voice‑card features, seat‑card capabilities, fax resources, Caller ID, DTMF/FSK handling, and more. The manual details the card’s architecture, functional modules, and supported audio codecs.
Installation instructions cover mechanical layout, system requirements, wiring of RJ11 and DB44 connectors, optional power‑feed modules, and hot‑plug procedures. Technical parameters such as dimensions, power consumption, environmental limits, and audio performance are listed in the appendix. This manual is written in Chinese.
Sanhui SHT-16B-CT specifications
| Dimensions (SHT‑8B) | 170 × 115 mm |
|---|---|
| Dimensions (SHT‑16B) | 310 × 115 mm |
| Weight (SHT‑8B) | ≈250 g |
| Weight (SHT‑16B) | ≈400 g |
| Operating Temperature | 0 °C – 55 °C |
| Storage Temperature | -20 °C – 85 °C |
| Audio Output Power | ≥50 mW (headphone) |
| Signal‑to‑Noise Ratio | ≥38 dB |
| Maximum Power Consumption | ≤12 W |
| Supported Audio Codecs | A‑law, μ‑law, IMA‑ADPCM, PCM, MP3, VOX, GSM |
Source: Sanhui SHT-8B/PCI, SHT-8B/PCI/FAX, SHT-16B-CT/PCI, SHT-16B-CT/PCI/FAX Voice Card Hardware Manual
All Sanhui SHT-16B-CT documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Sanhui SHT-8B/PCI, SHT-8B/PCI/FAX, SHT-16B-CT/PCI, SHT-16B-CT/PCI/FAX Voice Card Hardware Manual 17 p
- Three Exchange SHT-16B-CT/PCI SHT-16B-CT/PCI/MP3 analog telephone Recording Card hardware Manual 15 p
- Three Exchange SHT-16B-CT/cPCI 2.0 SHT-16B-CT/cPCI/MP3 2.0 analog telephone Recording Card hardware Manual 17 p
- Three Exchange CTI series voice Card SHT-16B-CT/cPCI 2.0 SHT-16B-CT/cPCI/FAX 2.0 SHT-16B-CT/cPCI/MP3 2.0 Manual 21 p
Questions answered in these manuals
What interfaces are provided on the SHT‑8B/PCI voice card?
The SHT‑8B/PCI card has one 3.5 mm stereo headphone jack and four RJ11 telephone line ports.
From: Sanhui SHT-8B/PCI, SHT-8B/PCI/FAX, SHT-16B-CT/PCI, SHT-16B-CT/PCI/FAX Voice Card Hardware Manual
How many channels can the SHT‑16B‑CT/PCI/FAX card support?
The SHT‑16B‑CT/PCI/FAX model supports 16 analog telephone channels.
From: Sanhui SHT-8B/PCI, SHT-8B/PCI/FAX, SHT-16B-CT/PCI, SHT-16B-CT/PCI/FAX Voice Card Hardware Manual
What is the power supply requirement for the SHT-16B-CT/cPCI 2.0 card?
The card requires +5 V DC at 600 mA, -12 V DC at 80 mA, and +12 V DC at 300 mA.
How many channels can be recorded simultaneously?
The card supports simultaneous recording on all 16 channels.
How many channels does the SHT-16B-CT/cPCI voice card provide?
The card provides 16 analog voice channels.
What connectors are available on the card for telephone lines?
The card has eight RJ11 four‑core connectors and one DB44 connector.
