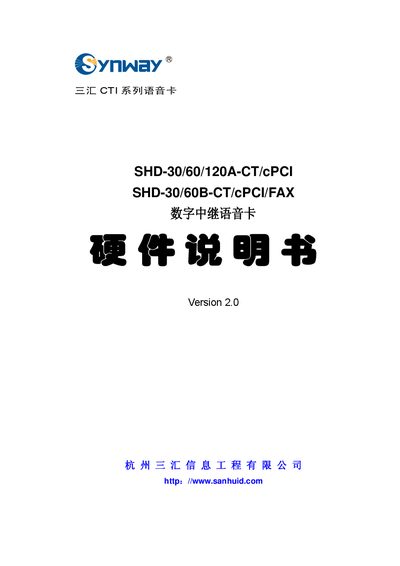

Sanhui SHD-30/60/120A-CT/cPCI & SHD-30/60B-CT/cPCI/FAX Hardware Manual
The SHD‑30/60/120A‑CT/cPCI and SHD‑30/60B‑CT/cPCI/FAX series are digital relay voice cards that use a CompactPCI 2.1 bus. Each card can provide 1, 2 or 4 E1 channels, supports Chinese 1‑, 7‑ and ISDN signaling, multiple codec formats, and includes hardware features such as lightning protection and a unique hardware serial number.
The manual is organized into an overview of functions and performance, a block‑diagram of the card architecture, detailed mechanical drawings, system requirements, step‑by‑step installation instructions, hot‑swap procedures, and a full list of technical specifications. Appendices give environmental limits, power consumption, and contact information for technical support. This manual is written in Chinese.
Sanhui 60B-CT specifications
| Dimensions (L×W) | 230 mm × 163 mm |
|---|---|
| Weight | ≈350 g |
| Operating Temperature | 0 °C – 55 °C |
| Storage Temperature | -20 °C – 85 °C |
| Maximum Power Consumption | ≤ 8 W |
| Audio Codec Formats | A‑Law, μ‑Law, IMA‑ADPCM, 16‑bit PCM, MP3, VOX |
| Audio Distortion | ≤ 3 % |
| Frequency Response | 300 Hz – 3400 Hz (±3 dB) |
| Signal‑to‑Noise Ratio | ≥ 38 dB |
| Echo Suppression Ratio | ≥ 40 dB |
| Lightning Protection Level | Level 4 |
| Certifications | FCC, CE, CCC |
Source: Sanhui SHD-30/60/120A-CT/cPCI & SHD-30/60B-CT/cPCI/FAX Hardware Manual
All Sanhui 60B-CT documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many E1 ports does the SHD‑30A‑CT/cPCI model support?
The SHD‑30A‑CT/cPCI model supports a single E1 port.
From: Sanhui SHD-30/60/120A-CT/cPCI & SHD-30/60B-CT/cPCI/FAX Hardware Manual
What is the maximum power consumption of the voice cards?
The cards consume no more than 8 W of power.
From: Sanhui SHD-30/60/120A-CT/cPCI & SHD-30/60B-CT/cPCI/FAX Hardware Manual
What are the system requirements for the SHD-60B-CT/PCI/FJ card?
The host PC needs a 300 MHz Intel Pentium II or higher CPU, at least 256 MB of RAM, a hard disk sized for the application, and runs Windows 2000/2003/XP or Linux (RH7.2, RH9.0, AS4, FC4, SUSE10).
From: Sanhui SHD-60B-CT/PCI/FJ Digital Relay Monitoring Card Hardware Manual
How many SHD-60B-CT/PCI/FJ cards can be installed in a single system?
A system can host up to four digital relay monitoring cards, each capable of monitoring two E1/T1 lines.
From: Sanhui SHD-60B-CT/PCI/FJ Digital Relay Monitoring Card Hardware Manual
