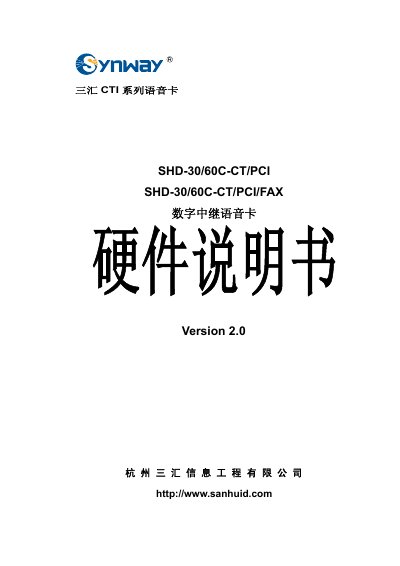

Sanhui SHD-30/60C-CT/PCI Digital Voice Card Hardware Manual
The SHD-30/60C-CT/PCI digital voice card is a PCI‑bus card that provides E1/T1 digital trunk interfaces for telephone voice processing. It supports Chinese 1# and 7# signaling, ISDN, fax resources, and a range of audio codecs. The card includes built‑in lightning protection, a unique hardware serial number, and a programmable signal detector.
The manual includes a functional overview, installation instructions with wiring diagrams, hardware block diagrams, and a detailed list of technical parameters such as dimensions, power consumption, and supported interfaces. Appendices provide additional technical data and contact information for support. This manual is written in Chinese.
Sanhui SHD-30 specifications
| Dimensions (L×W) | 310 mm × 115 mm (excluding mounting plate) |
|---|---|
| Weight | ≈250 g |
| Operating Temperature | 0 °C – 55 °C |
| Storage Temperature | -20 °C – 85 °C |
| Maximum Power Consumption | ≤ 8 W |
| Maximum Fax Rate per Line | 14 400 bps |
| Maximum Number of Fax Resources | 32 lines |
| Maximum Channels per Card | 60 channels |
| Maximum System Capacity | 8 cards simultaneously |
Source: Sanhui SHD-30/60C-CT/PCI Digital Voice Card Hardware Manual
All Sanhui SHD-30 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Sanhui SHD-30/60C-CT/PCI Digital Voice Card Hardware Manual 16 p
- Sanhui SHD-30/60/120A-CT/cPCI & SHD-30/60B-CT/cPCI/FAX Hardware Manual 16 p
- Sanhui SHD-30A-CT/PCI/FJ and SHD-60A-CT/PCI/FJ Digital Relay Monitor Card Hardware Manual 14 p
- Sanhui SHD-30B-CT/PCI/FJ Digital Relay Monitoring Card Hardware Manual 14 p
Questions answered in these manuals
How many fax lines can the SHD-30/60C-CT/PCI/FAX card support?
The card can support up to 32 fax lines, each with a maximum transmission rate of 14 400 bps.
From: Sanhui SHD-30/60C-CT/PCI Digital Voice Card Hardware Manual
What is the maximum power consumption of the card?
The card consumes no more than 8 W of power.
From: Sanhui SHD-30/60C-CT/PCI Digital Voice Card Hardware Manual
How many E1 ports does the SHD‑30A‑CT/cPCI model support?
The SHD‑30A‑CT/cPCI model supports a single E1 port.
From: Sanhui SHD-30/60/120A-CT/cPCI & SHD-30/60B-CT/cPCI/FAX Hardware Manual
What is the maximum power consumption of the voice cards?
The cards consume no more than 8 W of power.
From: Sanhui SHD-30/60/120A-CT/cPCI & SHD-30/60B-CT/cPCI/FAX Hardware Manual
How many input channels can a single card handle?
Each card can monitor up to 120 input channels.
From: Sanhui SHD-30A-CT/PCI/FJ and SHD-60A-CT/PCI/FJ Digital Relay Monitor Card Hardware Manual
What is the maximum power consumption of the cards?
The cards consume no more than 8 W of power.
From: Sanhui SHD-30A-CT/PCI/FJ and SHD-60A-CT/PCI/FJ Digital Relay Monitor Card Hardware Manual
