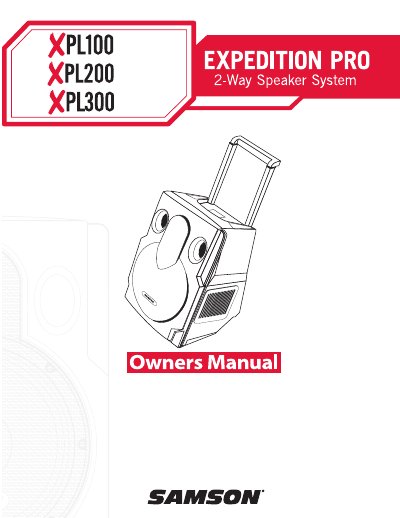

Samson XPL100/XPL200/XPL300 User Manual
This document serves as the user manual for the Samson XPL100, XPL200, and XPL300 series of audio equipment. It provides essential safety warnings and instructions to prevent fire, shock, and damage to the unit. Key precautions include avoiding exposure to rain or moisture, ensuring proper ventilation, and using only specified accessories.
Read onlineSamson XPL300 specifications
| Power Rating (Program) | 250 watts |
|---|---|
| Power Rating (Max Peak) | 400 watts |
| Frequency Response | 60 Hz - 15 kHz + 3 dB |
| Sensitivity | 97 dB SPL @ 1W/1m |
| Crossover Frequency | 2.3 kHz |
| LF Driver | 12 inch heavy-duty driver |
| HF Driver | 1 inch compression driver |
| Dimensions (H x W x D) | 21-1/4" x 14-5/8" x 17-3/8" |
| Weight | 38.5 lbs |
Source: samson XP300 service manual
All Samson XPL300 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What cleaning method is recommended for this unit?
You should clean the unit only with a damp cloth.
What safety precaution is required during lightning storms?
You must unplug the apparatus during lightning storms.
What is the power rating of the Samson XPL300?
The XPL300 has a Class D power cell capable of producing up to 200 watts RMS, with a program rating of 250 watts and a max peak of 400 watts.
Does the XPL300 have a built-in mixer?
Yes, it features a built-in 4-channel stereo mixer with two bands of equalization, two mic/line channels, and a stereo channel with a mic pre.
