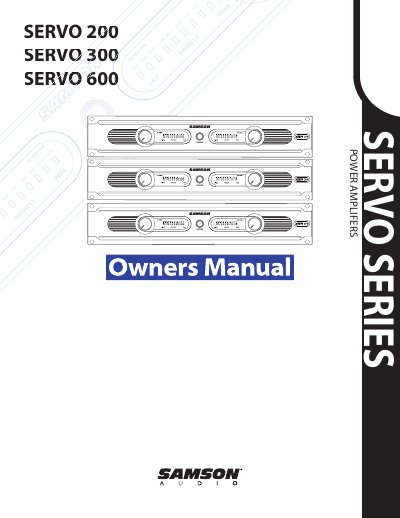

Samson SERVO 200/300/600 User Manual
The Servo Series features a comprehensive protection circuitry designed to safeguard the equipment. The document includes a guided tour of the front and rear panels, detailing the layout and function of various controls and connections.
Setting up and using the amplifier involves understanding specific connection modes, such as Bridge Mode, and adhering to safety instructions regarding power supply and environmental conditions.
Samson Servo 200 specifications
| Power Output (Stereo, 8 Ohm) | 66 Watts x 2 @ 80Hz |
|---|---|
| Power Output (Stereo, 4 Ohm) | 100 Watts x 2 @ 40Hz |
| Bridged Mono Power (8 Ohm) | 200 Watts |
| Signal to Noise Ratio | 102dB (20Hz-20k) |
| Distortion (SMPTE-IM) | - 0.05% |
| Output Circuitry Class | AB |
| Dimensions (WxHxD) | 19" x 3.5"x 11.7" |
| Net Weight | 15 Ibs (6.82 kg) |
Source: Samson Servo 200 Power Amplifier Specification Sheet
All Samson Servo 200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the purpose of the lightning flash symbol on the product?
The symbol alerts the user to the presence of uninsulated dangerous voltage within the product's enclosure that may constitute a risk of electric shock.
When should the unit be unplugged from the power source?
The unit should be unplugged during lightning storms or when it is not being used for long periods of time.
What is the power output of the Samson Servo 200 in stereo mode?
It delivers 66 Watts per channel at 80Hz and 100 Watts per channel at 40Hz into an 8 Ohm load.
Can the Servo 200 be used in mono mode?
Yes, a Bridge mode links both channels to provide 200 watts into an 8 Ohm load.
