Key facts
- Brand
- Ronshen
- Model
- BCD-262WYM
- Category
- Refrigerators
- Industry
- Appliances
- Documents
- 3
- Languages
- ZH
- Last added
- 2012-03-14
Start here

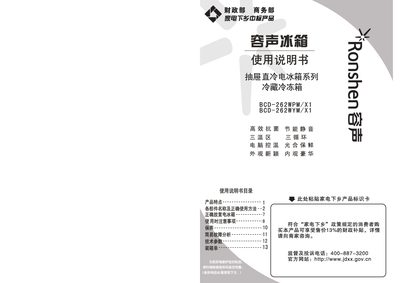

Rongsheng BCD-262WPM/X1 BCD-262WYM/X1 Refrigerator User Manual
This manual explains the correct installation, placement and connection of the Rongsheng BCD‑262WPM/X1 and BCD‑262WYM/X1 refrigerators, including ventilation clearances and power requirements. It also details the functions of the control panel, temperature modes, door alarm, anti‑bacterial and light‑preserving features.
Safety guidelines, regular cleaning, defrosting procedures, and troubleshooting tips are provided to ensure reliable operation and longevity of the appliance. Technical specifications such as rated voltage, power consumption and capacity are listed for reference. This manual is written in Chinese.
Ronshen BCD-262WYM specifications
| Total volume | 262 L |
|---|---|
| Freezer compartment volume | 73 L |
| Variable‑temperature compartment volume | 54 L |
| Freezer capacity | 15 kg/24 h |
| Rated voltage | 220 V |
| Rated frequency | 50 Hz |
| Rated current | 1 A |
| Defrost power | 120 W |
| Power consumption | 0.68 kWh/24 h |
| Energy efficiency class | 1 |
| Refrigerant | R600a |
| Weight | 71 kg |
| Dimensions (W×D×H) | 628 × 645 × 1801 mm |
| Noise level | 38 dB(A) |
All Ronshen BCD-262WYM documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I unlock the control panel?
Press and hold the lock key for more than 2 seconds; the lock will be released.
What should I do if ice builds up in the freezer?
When frost exceeds about 5 mm, turn off the refrigerator, remove all food, and manually remove the ice with a cloth after the appliance has defrosted.
How do I lock or unlock the control panel?
Press and hold the lock key for more than 2 seconds to unlock; the lock symbol will disappear and the keys become active again.
From: Rongsheng BCD-262WPM/X1 BCD-262WYM/X1 Refrigerator User Manual
How do I change the operating mode of the refrigerator?
Press the mode button; the display cycles through Fast Cool, Fast Freeze, Smart, and Energy‑Saving modes, each indicated by a flashing symbol.
What clearances are required around the refrigerator for proper ventilation?
Leave at least 100 mm at the back, 200 mm on each side, 300 mm above, and keep the door opening space at 160 mm.
