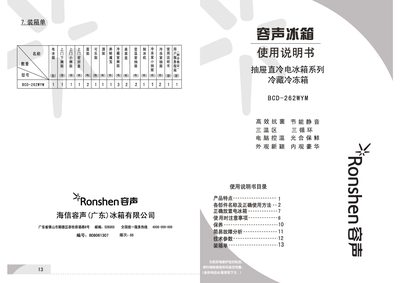

This manual explains how to correctly install and use the Ronshen BCD-262WYM refrigerator. It covers component identification, proper placement, power connection, and the functions of the three temperature zones, including the smart, fast‑freeze and energy‑saving modes.
Safety guidelines, maintenance procedures, and a detailed troubleshooting section are included, along with technical specifications such as capacity, power consumption and dimensions. The document also describes the antibacterial and optical‑preservation features of the appliance. This manual is written in Chinese.
| Total volume | 262 L |
|---|---|
| Freezer compartment volume | 73 L |
| Variable‑temperature compartment volume | 54 L |
| Freezer capacity | 15 kg/24 h |
| Rated voltage | 220 V |
| Rated frequency | 50 Hz |
| Rated current | 1 A |
| Defrost power | 120 W |
| Power consumption | 0.68 kWh/24 h |
| Energy efficiency class | 1 |
| Refrigerant | R600a |
| Weight | 71 kg |
| Dimensions (W×D×H) | 628 × 645 × 1801 mm |
| Noise level | 38 dB(A) |
Press and hold the lock key for more than 2 seconds; the lock will be released.
When frost exceeds about 5 mm, turn off the refrigerator, remove all food, and manually remove the ice with a cloth after the appliance has defrosted.
Use a dedicated 220 V, 50 Hz single‑phase outlet with a 10 A fuse, connect the ground wire, and avoid extending the power cord.
