Key facts
- Brand
- Ronshen
- Model
- BCD-270YM
- Category
- Refrigerators
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-14
Start here

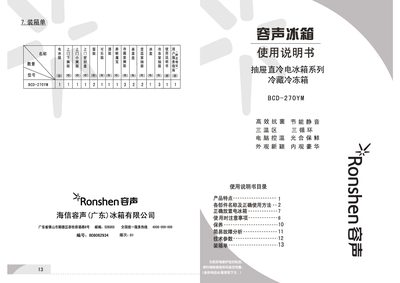

Ronshen BCD-270YM Refrigerator User Manual
This manual explains how to correctly install and place the Ronshen BCD-270YM refrigerator, including required clearances around the unit and proper electrical connections. It also details the control panel functions, temperature setting procedures, and the three operating modes (Smart, Fast Freeze, Energy Saving).
Additional sections cover the refrigerator's special features such as light‑based freshness preservation, antibacterial treatment, and door‑open alarm, as well as safety precautions, regular cleaning, and a troubleshooting guide with common fault codes and maintenance tips. This manual is written in Chinese.
Ronshen BCD-270YM specifications
| Total capacity | 270 L |
|---|---|
| Freezer capacity | 72 L |
| Variable temperature compartment capacity | 63 L |
| Freezing ability | 15 kg/24h |
| Rated voltage | 220 V |
| Rated frequency | 50 Hz |
| Rated current | 0.9 A |
| Power consumption | 0.63 kWh/24h |
| Energy efficiency class | 1 |
| Weight | 71 kg |
| Dimensions (W×D×H) | 628×645×1801 mm |
| Noise level | 38 dB(A) |
All Ronshen BCD-270YM documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I lock or unlock the control panel?
Press and hold the lock key (marked with "@@") for more than 2 seconds to lock; press it again to unlock.
What should I do if the display shows an error code like F1 or F2?
Check the power supply and fuse, then refer to the troubleshooting section for the specific fault; if the issue persists, contact an authorized service center.
What operating modes are available?
The refrigerator offers four preset modes: fast cooling, fast freezing, smart, and energy‑saving, selectable via the control panel.
Can I store sealed liquid in glass bottles in the freezer?
No. Storing sealed liquid in glass bottles in the freezer can cause the bottles to burst when the liquid expands upon freezing.
