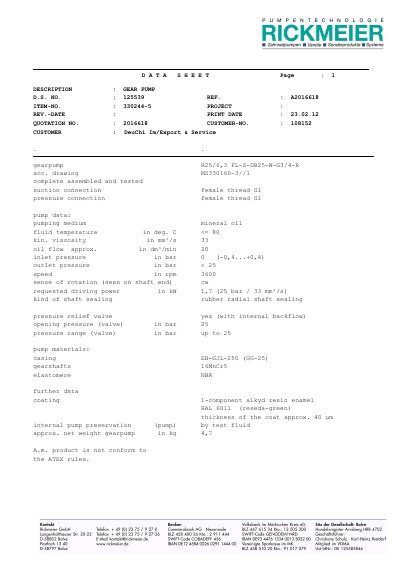

RICKMEIER R25/6 3 FL-Z-DB25-W-G3/4-R technology data
Datasheet 1 pages · 250 KB · EN
This document is a datasheet for the Rickmeier R25/6.3 FL-Z-DB25-W-G3/4-R gear pump (D.S. NO. 125539). It provides specific technical parameters including an oil flow of approximately 20 dm³/min, a maximum inlet pressure of 3 bar, and a maximum outlet pressure of 25 bar.
Read onlineRICKMEIER R25 specifications
| Pressure relief valve opening pressure | 25 bar |
|---|---|
| Casing material | EN-GJL-250 (GG-25) |
| Gearshaft material | 16MnCrs5 |
| Elastomere type | NBR |
| Coating color | RAL 6011 (reseda-green) |
| Approx. net weight | 4,7 kg |
Source: RICKMEIER R25/6 3 FL-Z-DB25-W-G3/4-R technology data
All RICKMEIER R25 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Product Leaflet 1
Questions answered in these manuals
What is the maximum fluid temperature for this pump?
The maximum fluid temperature allowed is +120 degrees Celsius.
What is the maximum fluid temperature for this gear pump?
The maximum fluid temperature allowed is +120 degrees Celsius.
