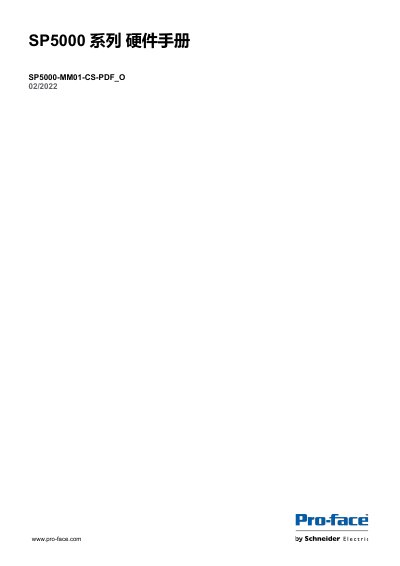

Pro-face SP5000 Series Hardware Manual
This manual covers the SP5000 series hardware, including safety instructions, product overview, model configurations, certification standards, and device connections. Detailed sections describe the host and display modules, LED indicators, and the full set of specifications for electrical, environmental, and functional aspects.
Installation and wiring procedures are provided with step‑by‑step guidance, followed by maintenance tasks such as SD/CFast card handling, battery replacement, and regular cleaning. The document also outlines after‑sales service resources and regulatory compliance information. This manual is written in Chinese.
Pro-face SP5000 Series specifications
| Display Type | 65,536-color TFT |
|---|---|
| Touch Panel | Analog Touch Panel |
| Resolution | 1,024 × 768 pixels (XGA) |
| Touch Technology | Resistive Film (analog, multi-touch) |
| Features | Auto Scaling |
| Brightness Sensor | Yes |
All Pro-face SP5000 Series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What display resolution does the SP-5700TP model have?
The SP-5700TP model has a display resolution of 1,024 × 768 pixels (XGA).
Does the SP-5500TP model include a brightness sensor?
Yes, the SP-5500TP model includes a brightness sensor.
What input voltage range does the SP5000 series accept?
The modules operate from 12 Vdc up to 24 Vdc, with an input voltage limit of 10.8 Vdc to 28.8 Vdc.
How should the device be powered off before performing maintenance?
Before any installation, removal, or maintenance work, disconnect the power supply and ensure all covers are removed.
What is the input voltage range for the SP5000 series?
The SP5000 series operates from 12 VDC to 24 VDC.
How much power does the 15" SP5000 display consume at maximum?
The maximum power consumption is 22 W.
