Key facts
- Brand
- Newman
- Model
- A10+
- Category
- Other Electronics
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-27
Start here

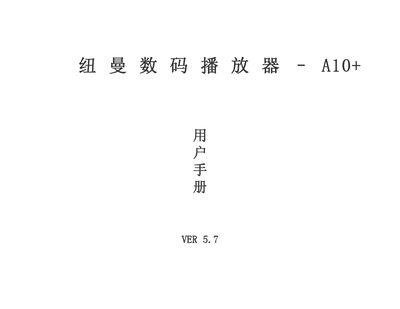

Newman A10+ Digital Player User Manual
This manual provides step‑by‑step instructions for using the Newman A10+ digital player, including safety precautions, button functions, remote control usage, and basic operation such as power on/off, menu navigation, and playback control.
It also details charging procedures, battery management, T‑Flash card insertion, lock key settings, technical specifications, and environmental compliance information. This manual is written in Chinese.
Newman A10+ specifications
| Display size | 4.3 inch TFT LCD |
|---|---|
| Resolution | 480 × 272 |
| Music formats | MP3, WMA, FLAC, APE |
| Video formats | RM, RMVB, AVI, FLV |
| MP3 bitrate | 32 Kbps – 320 Kbps |
| WMA bitrate | 32 Kbps – 320 Kbps |
| Internal storage | 4 GB / 8 GB / 16 GB |
| Image formats | JPG, BMP, PNG |
| Maximum image resolution | 12 MP |
| Signal‑to‑noise ratio | 85 dB |
| USB interface | USB 2.0 High‑Speed Mini 5‑pin |
| Battery | Built‑in lithium‑ion |
| Operating temperature | 0 °C – 45 °C |
| Dimensions | 128.3 mm × 78.1 mm × 11.8 mm |
All Newman A10+ documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I replace the battery?
Open the battery cover, insert a new AAA battery with correct polarity, and close the cover. If the player does not respond, wait a few minutes before reinserting the battery.
What should I do if the player freezes or stops working?
Remove the battery, wait about one minute, reinsert the battery, and power the player on again. This usually restores normal operation.
