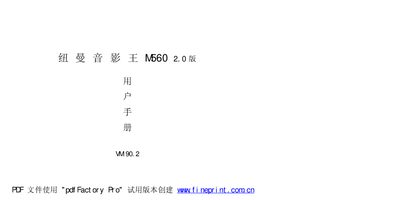

NEWMAN M560 2.0 user manual
User Manual 40 pages · 426 KB · ZH
This manual introduces the Newman M660 MP3 player, covering its key features such as MP3/MP4 playback, image viewing, dual headphone ports, recording functions, and USB data transfer. It also explains the user interface, button layout, and menu navigation to help users operate the device efficiently.
Additional sections describe safety precautions, battery care, charging procedures, and troubleshooting tips, followed by a technical specifications table that lists dimensions, display, supported formats, output power, and environmental limits. This manual is written in Chinese.
Newman M560 specifications
| Dimensions | 76 mm × 42 mm × 18 mm |
|---|---|
| Video format | AMWV |
| Display | 1.5‑inch color screen (128 × 128 pixels) |
| Lyrics format | LRC |
| Document format | TT |
| Image type | JPES_BP |
| Recording format | WAMV, AT |
| Maximum output power | 10 mW |
| Output frequency range | 20 Hz – 20 kHz |
| Signal‑to‑noise ratio | 86 dB |
| Supported languages | Chinese, English, French, etc. |
| Communication interface | LSBE2.0 |
| Battery | Built‑in lithium‑ion battery |
| Operating temperature | 0 °C to 40 °C |
Source: NEWMAN M560 2.0 user manual
