Key facts
- Brand
- Midea
- Model
- MXV-ZLP90
- Category
- Sterilizing cabinet
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-04-10
Start here

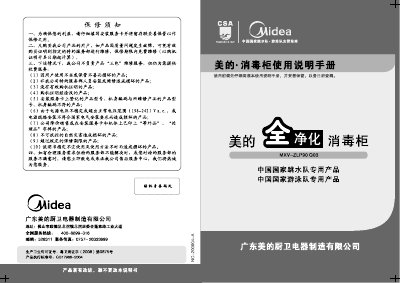

Midea MXV-ZLP90 Q03 Disinfection Cabinet User Manual
This manual explains how to install, operate, and maintain the Midea MXV‑ZLP90 Q03 disinfection cabinet. It includes safety warnings, warranty information, and detailed instructions for using the upper high‑temperature chamber and the lower ozone/UV chamber.
The guide also covers troubleshooting common issues such as power failures, door lock alarms, and cleaning procedures, as well as specifications, dimensions, and mounting requirements for proper integration into kitchen cabinetry. This manual is written in Chinese.
Midea MXV-ZLP90 specifications
| Voltage | 220 V ~ 50 Hz |
|---|---|
| Rated Power | 606 W |
| Upper Chamber Power | 400 W |
| Lower Chamber Power | 206 W |
| Capacity | 90 L |
| Upper Chamber Temperature | 125 °C |
| Upper Chamber Disinfection Time | ≥15 min |
| Lower Chamber Ozone Concentration | 20‑40 mg/m³ |
| Ozone/UV Lamp Wavelength | 185 nm / 254 nm |
| Ozone/UV Lamp Power | 6 W |
| Net Weight | 29 kg |
| Dimensions (L×W×H) | 595 mm × 430 mm × 630 mm |
| Maximum Load (Utensils) | 12 kg |
Source: Midea MXV-ZLP90 Q03 Disinfection Cabinet User Manual
All Midea MXV-ZLP90 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I turn the cabinet on and see the power indicator?
Press the power button; the power icon lights up and the cabinet enters standby mode.
What cleaning methods are recommended for the cabinet?
Wipe the interior and exterior with a soft cloth or sponge and a neutral detergent; avoid gasoline, polish, or abrasive cleaners.
How should I clean the disinfection cabinet?
Unplug the power plug, wipe the interior and exterior with a soft cloth or sponge using a neutral detergent, and avoid gasoline, polish, or corrosive cleaners; do not spray water directly onto the cabinet.
