Key facts
- Brand
- Midea
- Model
- CXW-200-DT17S
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-04-10
Start here

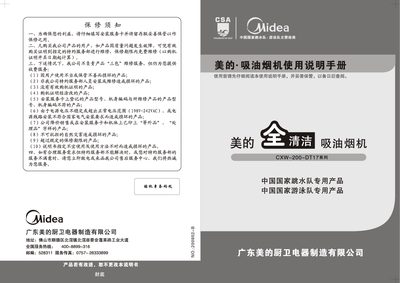

Midea CXW-200-DT17 Range Hood User Manual
This manual covers the warranty terms, safety warnings, and general usage guidelines for the Midea CXW-200-DT17 range hood. It explains the conditions that may void the warranty and provides contact information for service.
Detailed sections describe how to install the hood at the proper height, connect the exhaust pipe, replace the lighting lamp, and perform regular cleaning and maintenance. Technical specifications and a parts list are also included. This manual is written in Chinese.
Midea CXW-200-DT17S specifications
| Model | CXW-200-DT17 series |
|---|---|
| Input Voltage / Frequency | 220V / 50Hz |
| Power Consumption | 200 W |
| Lighting Power | 2 × 15 W (220V) |
| Rated Power | 230 W |
| Exhaust Pipe Diameter | 160 mm |
| Air Flow | 15 m³/min |
| Noise Level | 55 dB |
| Dimensions (W × D × H) | 896 mm × 500 mm × 580 mm |
| Weight | 24 kg |
All Midea CXW-200-DT17S documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the recommended installation height for the hood above the stove?
Install the hood 650 mm to 750 mm above the cooking surface for optimal performance.
What type of lamp can be used for replacement?
Replace the lamp with a 220 V, 15 W lamp of the same specification as the original.
What is the warranty coverage for the range hood?
Defects that occur within the warranty period are repaired free of charge, provided the product is used according to the manual.
