Key facts
- Brand
- Inovance
- Model
- MD320
- Documents
- 4
- Languages
- EN · ZH
- Last added
- 2012-03-21
Start here

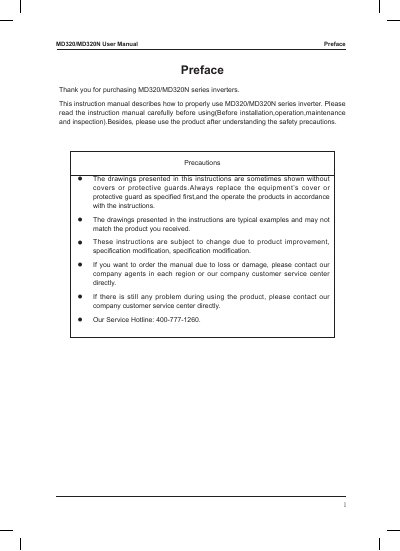

Inovance MD320/MD320N Inverter User Manual
This manual describes the MD320/MD320N series modular inverters, their design concepts, and the functions of the bottom‑layer motor control module, middle‑layer general functional module, and top‑layer specialized industry module. It guides users through safe handling, unpacking, and inspection before first use.
Key sections cover safety and precautions, product information (including technical data and dimensions), mechanical and electrical installation, operation and display interface, parameter tables, EMC guidelines, fault diagnosis, and appendices with card descriptions and communication settings.
Inovance MD320 specifications
| Safety standard | IEC/EN 61800-5-1:2003 |
|---|---|
| IP protection | IP54 |
| Maximum speed segments (MD320) | 16 segments |
| Maximum speed segments (MD300) | 4 segments |
Source: Inovance MD320/MD320N Frequency Transformer User Manual
All Inovance MD320 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the warranty period for the MD320/MD320N?
The warranty period is ten months.
From: Inovance MD320/MD320N Frequency Transformer User Manual
How can I get technical support for the MD320/MD320N?
Call the nationwide service phone 400‑777‑1260.
From: Inovance MD320/MD320N Frequency Transformer User Manual
What protection rating does the open‑structure inverter have?
The inverter has a protection level of IP00.
From: Inovance MD320/MD280 Open-Structure Inverter Installation Guide
Which inverter series does this manual cover?
It applies to the MD320 and MD280 open‑structure series inverters.
From: Inovance MD320/MD280 Open-Structure Inverter Installation Guide
