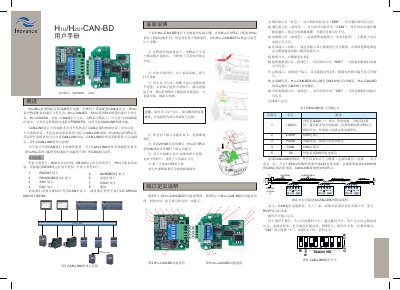

Inovance H1U/H2U-CAN-BD CAN Communication Card User Manual
User Manual 2 pages · 1.3 MB · ZH
This manual describes the hardware configuration of the CAN communication card for Inovance H1U/H2U series PLCs, including installation steps, port definitions, and wiring for CAN‑LINK networks. It also provides details on indicator lights, dip‑switch settings, and safety precautions.
The document is intended for technicians installing the card and for users who need to set station numbers, baud rates, and termination resistors to ensure reliable CAN communication. This manual is written in Chinese.
Inovance H2U-CAN-BD specifications
| Maximum CAN‑LINK devices | 63 |
|---|---|
| Termination resistor | 120 Ω |
| High‑speed baud rate | 500 kbps |
| H2U‑CAN‑BD mounting screw | M3×6 self‑tapping |
Source: Inovance H1U/H2U-CAN-BD CAN Communication Card User Manual
