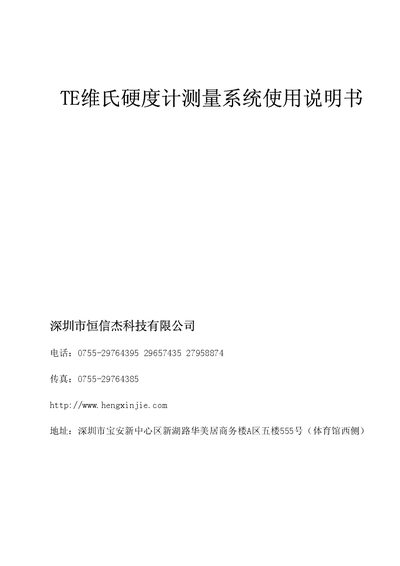

Hengxin Technology HV-1000 TE Vickers Hardness Measurement System User Manual
The TE Vickers hardness measurement system is built on the HV-1000 microscope hardness tester and adds image‑processing software, a CCD camera and a PC. It provides automated Vickers hardness measurement with image resolution up to 768 × 576 pixels and a test‑force range of 0.01–1 kgf.
The manual describes system composition, hardware requirements, installation steps for the CG300 image card, encryption dongle and software, as well as detailed operation procedures, database management, maintenance, and common troubleshooting tips. This manual is written in Chinese.
Hengxin Technology HV-1000 specifications
| Test force range | 0.01–1 kgf |
|---|---|
| Minimum detection unit | 0.025 µm |
| Image resolution | 44 万 (768 × 576) pixels |
| CPU requirement | ≥1.0 GHz |
| RAM requirement | ≥128 MB |
| Hard‑disk requirement | ≥10 GB |
| Graphics card requirement | True‑color ≥16‑bit |
Source: Hengxin Technology HV-1000 TE Vickers Hardness Measurement System User Manual
All Hengxin Technology HV-1000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I install the CG300 image‑card driver?
Run the program CG300W32.EXE (installed with the CG300 demo), select the LIVE option, and the driver will be installed.
From: Hengxin Technology HV-1000 TE Vickers Hardness Measurement System User Manual
How is the software encryption dongle installed?
Execute SoftDogInstdrv.exe and follow the on‑screen prompts to complete the dongle installation.
From: Hengxin Technology HV-1000 TE Vickers Hardness Measurement System User Manual
How do I install the CG300 image card driver?
Run the CG300W32.EXE program (installed from the CG300\DEMO directory) and select the LIVE option to verify the driver.
From: Hengxin Technology HV-1000 Image Processing Software User Manual
How can I save an image file from the software?
Choose the Save Image menu, select a BMP file name, and click the Save button to store the current image on disk.
From: Hengxin Technology HV-1000 Image Processing Software User Manual
