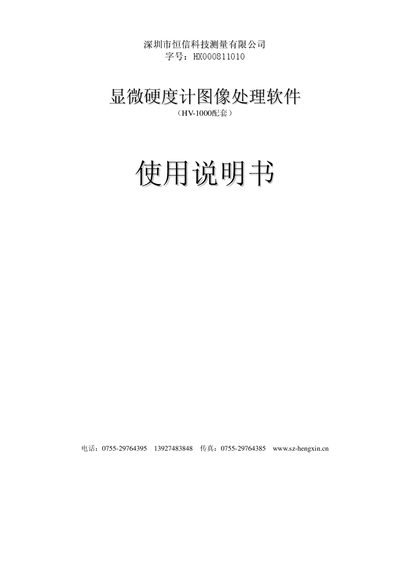

User manual for the HV-1000 image processing software that controls the HV-1000 micro‑hardness tester.
This manual describes the HV-1000 image processing software, which works with the HV-1000 micro‑hardness tester to automate Vickers hardness measurements and data analysis. It covers system overview, hardware configuration, software installation, and operation of measurement and database functions.
The guide provides step‑by‑step instructions for installing the CG300 image card, the encryption dongle, and the software itself, explains system requirements, details the user interface, and includes troubleshooting tips for CCD imaging and printing issues. This manual is written in Chinese.
| Test force range | 0.01–1 kgf |
|---|---|
| Minimum detection unit | 0.025 µm |
| Image resolution | 768 × 576 pixels (≈440,000) |
| Computer requirements | CPU Pentium III or higher, 1.0 GHz+, 10 GB HDD+, 128 MB RAM+, 16‑bit color graphics |
| Available lenses | 40× and 10× |
Run the CG300W32.EXE program (installed from the CG300\DEMO directory) and select the LIVE option to verify the driver.
Choose the Save Image menu, select a BMP file name, and click the Save button to store the current image on disk.
