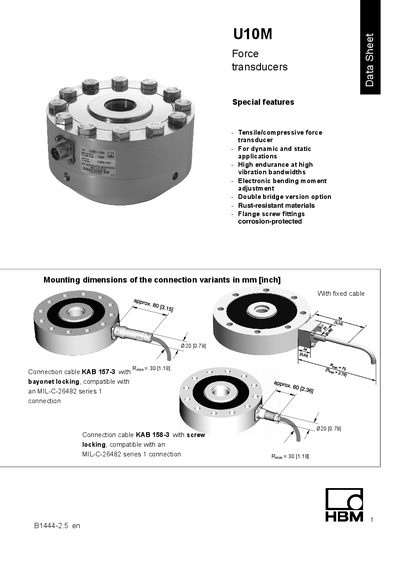

HBM U10M Force Transducer Datasheet
The document provides a comprehensive overview of the HBM U10M tensile/compressive force transducer. It details features such as high endurance at high vibration bandwidths, electronic bending moment adjustment options, and rust-resistant materials suitable for dynamic and static applications.
Key technical data includes nominal forces ranging from 1.25 kN to 500 kN, with corresponding sensitivity values between 1 mV/V and 2.5 mV/V. The datasheet lists specific mechanical dimensions for various configurations (with or without foot adapters), connection options like bayonet locking and screw locking compatible with MIL-C-26482 series 1 connections, and a list of separate accessories including cables and knuckle eyes.
HBM U10M specifications
| Accuracy class | 0.03 to 0.06 |
|---|---|
| Reference excitation voltage | 5 V |
| Operating temperature range | -30 °C to +85 °C |
| Degree of protection | IP64 / IP67 / IP68 |
| Output resistance | 280 to 360 Ω |
All HBM U10M documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What connection types are compatible with the U10M?
The transducer supports bayonet locking (compatible with MIL-C-26482 series 1) and screw locking connections.
Can the sensitivity be adjusted?
Yes, there is an option available to adjust the sensitivity to 1 mV/V or 2 mV/V.
