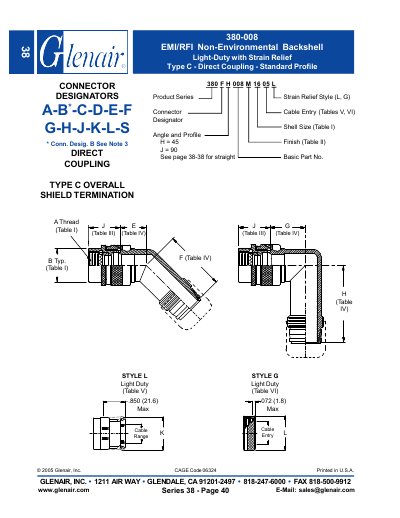

Glenair 380-008 EMI/RFI Non-Environmental Backshell Light-Duty with Strain Relief Type C - Direct Coupling - Standard Profile
This document provides technical data for the Glenair Series 38 Light Duty EMI/RFI Non-Environmental Backshell. It covers standard profiles with direct coupling and strain relief features.
The datasheet includes detailed dimensional tables for various configurations, including overall shield termination styles (Type C), cable entry sizes ranging from .125 to 1.250 inches, and specific dash numbers corresponding to different cable ranges.
Glenair Series 38 specifications
| Product Series | Series 38 |
|---|---|
| Style Type | Light Duty |
| Coupling Type | Direct Coupling |
| Strain Relief Style | L, G |
| Cable Range Max | .850 (21.6) |
| Cable Entry Min | .062 (1.6) |
All Glenair Series 38 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum cable range for a Series 38 backshell?
The maximum cable range depends on the specific style and dash number, reaching up to 1.718 inches (43.6 mm) for certain configurations.
What is the maximum cable entry size available?
The maximum cable entry size listed in the tables is 1.250 inches (31.8 mm).
What are the available shell sizes for the Series 38 backshell?
The backshell is offered in sizes 08/09, 10/11, 12/13, 14/15, 16/17, 18/19, 20/21, 22/23, 24/25, 28/29, 32/33, and 36/40.
From: Glenair Series 38 EMI/RFI Non-Environmental Backshell Datasheet
Which surface finishes can be selected for the backshell?
Finishes include Cadmium Plate with Olive Drab and Electroless Nickel.
From: Glenair Series 38 EMI/RFI Non-Environmental Backshell Datasheet
