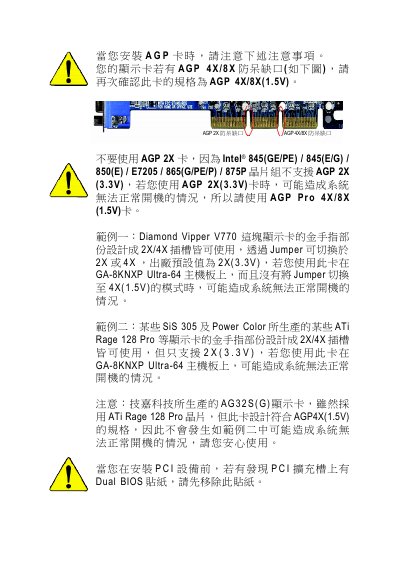

GA-8KNXP Ultra-64 P4 Titans series main-board chinese installation Manual
This guide provides detailed instructions for installing the Gigabyte GA-8KNXP Ultra-64 motherboard. It includes a layout diagram, descriptions of the CPU socket, memory slots, expansion slots, and power connectors, as well as BIOS configuration and troubleshooting tips.
The manual also lists the supported processors, memory types, and peripheral interfaces such as AGP, PCI‑X, IDE, SATA, and USB. Compliance declarations for EMC and FCC are included, along with contact information for Gigabyte technical support. This manual is written in Chinese.
GA-8KNXP specifications
| CPU Socket | Socket478 |
|---|---|
| Supported CPUs | Intel® Pentium® 4 (Northwood, Prescott) |
| AGP Slot | AGP Pro 8X/4X (1.5 V) |
| PCI‑X Slots | 2 × 64‑bit PCI‑X |
| USB Ports | 8 × USB 2.0/1.1 |
Source: GA-8KNXP Ultra-64 P4 Titans series main-board chinese installation Manual
All GA-8KNXP documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
Which processors are supported by the GA-8KNXP Ultra-64 motherboard?
The board supports Intel® Pentium® 4 processors, including Northwood and Prescott cores.
From: GA-8KNXP Ultra-64 P4 Titans series main-board chinese installation Manual
What CPU socket does the GA-8KNXP / GA-8I875 Ultra use?
It uses a Socket 478 for Intel Pentium 4 processors.
From: GA-8KNXP GA-8I875 Ultra P4 Titans series main-board chinese installation Manual
What chipset is integrated on this motherboard?
The motherboard is built around the Intel 875P chipset.
From: GA-8KNXP GA-8I875 Ultra P4 Titans series main-board chinese installation Manual
