Start here

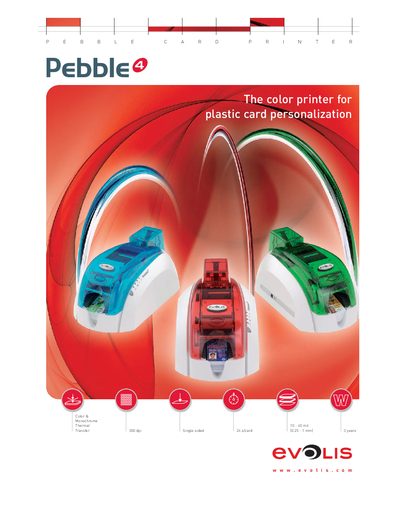

Evolis Pebble 4 Card Printer Product Specification Sheet
The Evolis Pebble 4 is a single-sided color card printer designed for plastic card personalization. It features a 300 dpi print head capable of both color dye sublimation and monochrome thermal transfer printing. The device supports various encoding technologies including magnetic stripes, smart cards with contact or contactless (RFID) options, allowing for the creation of multifunctional badges in a single pass.
The printer includes a detachable 100-card feeder and an output hopper, available in Ocean Blue, Fire Red, or Jungle Green. It connects via USB and offers optional Ethernet TCP-IP connectivity. The unit comes with eMedia Card Designer software for badge design and is compatible with Windows, Mac OS X, and Linux platforms.
Evolis Pebble 4 specifications
| Print Resolution | 300 dpi (11.8 dots/mm) |
|---|---|
| Card Thickness Range | 10 - 40 mil (0.25 - 1 mm) |
| Card Feeder Capacity | 100 cards (30 mil), 300 cards (10 mil) |
| Output Hopper Capacity | 50 cards (30 mil), 150 cards (10 mil) |
| Color Printing Speed | 150 cards/hour |
| Monochrome Printing Speed | Up to 1000 cards/hour |
| Memory | 16 MB RAM |
| Operating Temperature | 59° / 86° F (15° / 30° C) |
| Warranty | 3 years |
Source: Evolis Pebble 4 Card Printer Product Specification Sheet
All Evolis Pebble 4 documents by type
Questions answered in these manuals
Does the printer support encoding options?
Yes, it supports magnetic stripe encoders and smart card stations with contact or contactless (RFID) technology.
From: Evolis Pebble 4 Card Printer Product Specification Sheet
What is the maximum printing speed for monochrome cards?
The printer can print monochrome cards at a speed of up to 1000 cards per hour.
From: Evolis Pebble 4 Card Printer Product Specification Sheet
What card types does the Pebble 4 support?
It supports all PVC, Composite PVC cards, PET, ABS and special varnished cards.
What are the supported operating systems?
The printer supports Windows XP, Server 2003 and Vista 32 & 64 bits, Mac OS X v10.2/10.3/10.4, and Linux.
