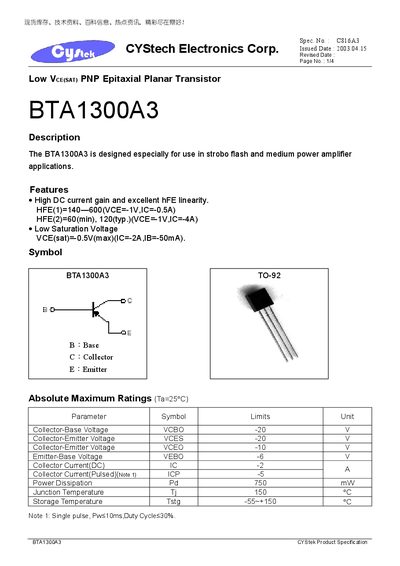

CYStek BTA1300A3 Datasheet
The BTA1300A3 is a low‑voltage PNP epitaxial planar transistor designed for strobo flash and medium‑power amplifier applications. It offers high DC current gain and low saturation voltage, making it suitable for circuits requiring linear hFE performance.
The datasheet lists absolute maximum ratings, detailed electrical characteristics such as hFE ranges, saturation voltage, and collector‑emitter voltage limits, as well as the TO‑92 plastic package dimensions and material specifications.
Cystek BTA1300A3 specifications
| DC current gain (hFE) typical range | 140–600 (VCE=-1V, IC=-0.5A) |
|---|---|
| Collector‑Emitter saturation voltage | -0.5 V (max) at IC=-2 A, IB=-50 mA |
| Collector‑Emitter voltage rating | -10 V |
| Maximum DC collector current | -2 A |
| Power dissipation | 750 mW |
| Maximum junction temperature | 150 °C |
| Package dimensions (length) | 4.33–4.83 mm |
| Package type | 3‑lead TO‑92 plastic package |
