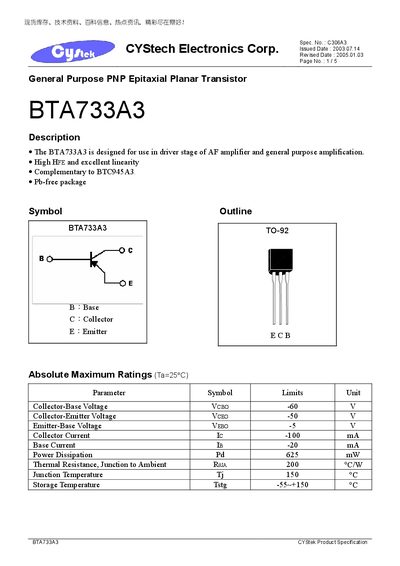

CYStek BTA733A3 General Purpose PNP Epitaxial Planar Transistor Datasheet
The BTA733A3 is a general‑purpose PNP epitaxial planar transistor intended for driver stages of audio‑frequency amplifiers and general amplification. It offers high linearity, Pb‑free packaging, and is complementary to the BTC945A3.
The document lists absolute maximum ratings, typical hFE values, characteristic curves, power‑derating information, and detailed TO‑92 package dimensions and material specifications.
Cystek BTA733A3 specifications
| Collector‑Emitter Voltage (Vceo) | -50 V |
|---|---|
| Emitter‑Base Voltage (Vebo) | -5 V |
| Collector Current (Ic) | -100 mA |
| Base Current (Ib) | -20 mA |
| Power Dissipation (Pd) | 625 mW |
| Maximum Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Tstg) | -55 °C to +150 °C |
| DC Current Gain (hFE) Range | 135 – 600 |
| Package Type | TO‑92 Plastic Package |
Source: CYStek BTA733A3 General Purpose PNP Epitaxial Planar Transistor Datasheet
All Cystek BTA733A3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector current for the BTA733A3?
The maximum collector current is 100 mA.
From: CYStek BTA733A3 General Purpose PNP Epitaxial Planar Transistor Datasheet
What package does the BTA733A3 use?
It is supplied in a TO‑92 plastic package.
From: CYStek BTA733A3 General Purpose PNP Epitaxial Planar Transistor Datasheet
What is the maximum collector current for the BTA733A3?
The maximum collector current is 100 mA.
From: CYStek BTA733A3 General Purpose PNP Epitaxial Planar Transistor Datasheet
What package type does the BTA733A3 use?
It is supplied in a TO‑92 3‑lead plastic package.
From: CYStek BTA733A3 General Purpose PNP Epitaxial Planar Transistor Datasheet
