Start here

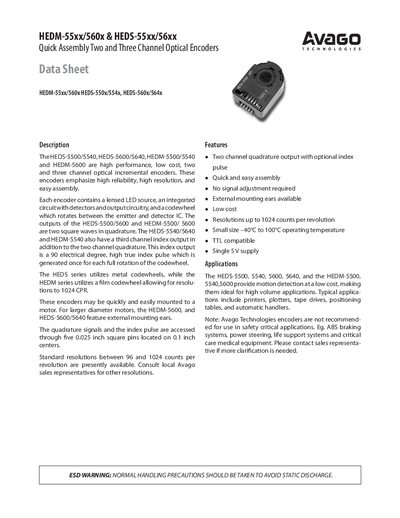

Avago HEDM-55xx/560x and HEDS-55xx/56xx Handbook
The Avago HEDM‑55xx/560x and HEDS‑55xx/56xx series are low‑cost, high‑performance two‑ and three‑channel optical incremental encoders. They provide quadrature outputs with optional index pulses and are designed for quick and easy assembly on motor shafts.
The document includes theory of operation, mechanical and electrical characteristics, recommended operating conditions, mounting guidelines, and typical interface options, helping users select the right resolution, install the encoder, and integrate it into control systems.
Avago 560x specifications
| Resolution | up to 1024 counts per revolution |
|---|---|
| Operating Temperature | -40 °C to 100 °C |
| Shaft Axial Play | +0.25 mm |
| Maximum Speed | 30,000 RPM |
All Avago 560x documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum resolution of the HEDM/HEDS encoders?
The encoders support resolutions up to 1024 counts per revolution.
Are these encoders suitable for safety‑critical applications?
Avago Technologies states the encoders are not recommended for safety‑critical use such as ABS braking or life‑support systems.
