AK Semiconductor SRA2206U Datasheet
Datasheet 3 pages · 49 KB · EN

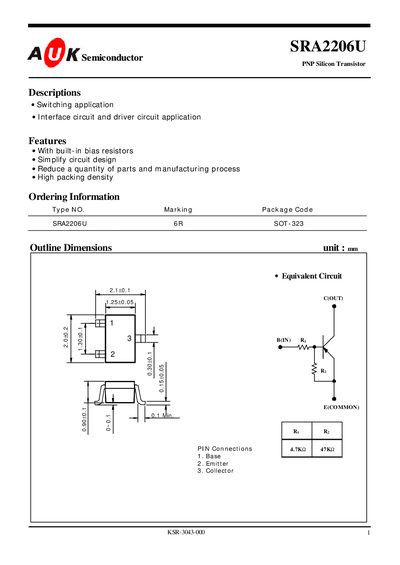

The SRA2206U is a PNP silicon transistor intended for switching, interface circuit, and driver circuit applications. It features built‑in bias resistors, high packing density, and a simplified design that reduces part count.
The datasheet lists absolute maximum ratings, detailed electrical characteristics, pin assignments, and characteristic curves, enabling designers to evaluate performance parameters such as voltage limits, current capability, gain, and transition frequency.
AUK SRA2206U specifications
| Out Voltage (Vo) | -50 V |
|---|---|
| Input Voltage (Vi) | -20 V |
| Out Current (Io) | -100 mA |
| Power Dissipation (Pp) | 200 mW |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Tst) | -55 ~ 150 °C |
All AUK SRA2206U documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Other documents 1
Questions answered in these manuals
What is the maximum collector‑emitter voltage for the SRA2206U?
The maximum collector‑emitter voltage is -50 V.
