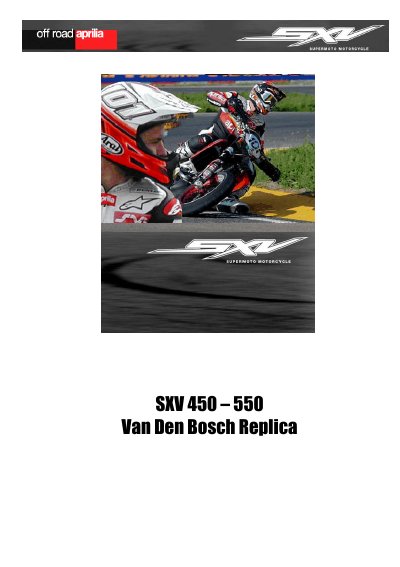

Aprilia SXV 450-550 VDB Replica Off-Road Motorcycle User Manual
The document serves as a user guide for the Aprilia SXV 450-550 Van Den Bosch Replica, designed specifically for exclusive use in competitions. It details vehicle starting procedures, including the use of an external battery for cold starts and specific steps to connect the injection circuit via a key jack on the handlebar.
The manual covers remote adjustments for the front brake lever position and fork locking mechanisms used as launch control. It also explains how to manage asymmetric chain tensioner pads when changing sprockets, noting that rotating these pads corresponds to one tooth of the sprocket.
Aprilia SXV 450-550 VDB Replica specifications
| Front Fork Type | Marzocchi Shiver 50 |
|---|---|
| Front Fork Travel | 267mm |
| Rear Shock Type | Mono Sachs racing |
| Rear Shock Travel | 120mm |
| Standard Primary Spring (450) | 130 kg |
| Standard Secondary Spring (450) | 40 kg |
All Aprilia SXV 450-550 VDB Replica documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What battery is required for cold starts?
An external battery supplied with the vehicle is necessary for cold starting.
How do you adjust the front brake lever position?
Adjustment is done by acting on the adjustment knob located on the left handlebar.
What is required to start the vehicle in cold conditions?
It is necessary to use the external battery that comes as an accessory.
From: Aprilia SXV 450-550 VDB Replica Off-Road Motorcycle User Manual
How do you adjust the distance of the front brake lever?
Use the adjustment knob on the left handlebar until the desired distance is obtained.
