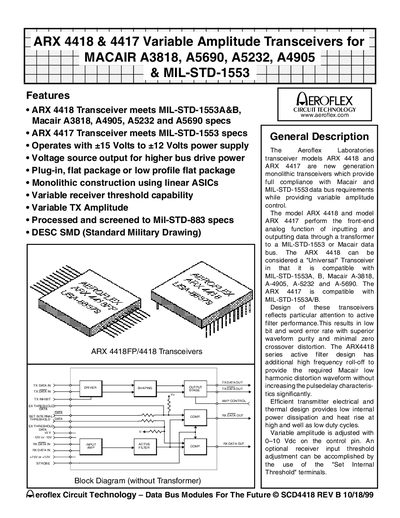

AEROFLEX ARX 4418 4417 Variable Amplitude Transceivers for MIL-STD-1553 MACAIR A3818 A5690 A5232 A4905
The Aeroflex ARX 4418 and ARX 4417 are monolithic variable‑amplitude transceivers that meet MIL‑STD‑1553A/B and Macair specifications. They provide selectable transmitter output amplitude and adjustable receiver thresholds, with full compliance to military data‑bus requirements.
The document details electrical characteristics, absolute maximum ratings, package options, and ordering information for both plug‑in and flat‑pack configurations, including power‑supply ranges, driver current limits, and thermal dissipation data.
Aeroflex A5232 specifications
| Operating Case Temperature | -55 °C to +125 °C |
|---|---|
| Power Supply Voltage Range | +15 V to +18 V (TX) / +5 V to +7 V (RX) |
| Driver Peak Output Current | 300 mA |
| Total Package Power Dissipation | 2.4 W (full temperature range) |
| Maximum Junction‑to‑Case Rise | 60 °C/W |
All Aeroflex A5232 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What power‑supply voltages does the ARX 4418/4417 require?
The transceiver operates from +15 V to +18 V for the transmitter supply and +5 V to +7 V for the receiver supply.
What is the maximum driver peak output current?
The driver can source up to 300 mA of peak output current.
