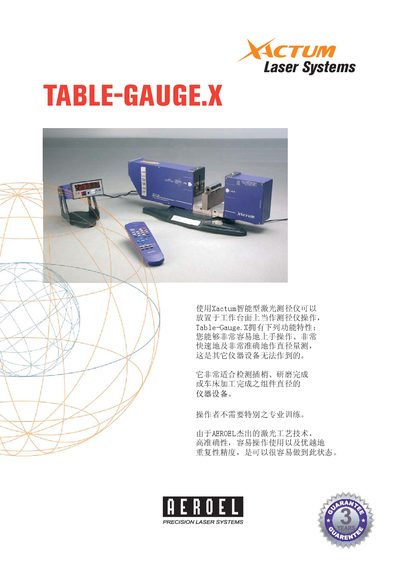

Aeroel Table-Gauge.X Laser Systems User Manual
The Table‑Gauge.X is a tabletop laser gauge designed for fast, accurate diameter, roundness, run‑out and groove measurements of workpieces such as inserts, grinding parts, or turned components. It can be used without specialized training, making it suitable for shop‑floor operators.
The system includes the laser gauge (XLS40 or XLS80), built‑in software, a multicolour LED display (DM‑100), infrared remote, optional linear slides, V‑type fixtures, and networking capability. It offers Free‑running, Auto‑sync and On‑command measurement modes, optional Start/Stop control via Ethernet/RS‑232, foot switch, or remote, and supports temperature compensation (NO‑VAR) and web‑based data access. This manual is written in Chinese.
Aeroel XLS40 specifications
| Measurement area (mm) | 40 (XLS40) / 80 (XLS80) |
|---|---|
| Measurable range (mm) | 0.06‑38 (XLS40) / 0.75‑78 (XLS80) |
| Scan frequency (Hz) | 480 / 1200 |
| Resolution (µm) | 0.01 at best |
| Repeatability accuracy (µm) | ±0.07 (XLS40) / ±0.2 (XLS80) at best |
| Linear accuracy (µm) | ±0.5 (XLS40) / ±1 (XLS80) at best |
| Display module DM‑100 | 6 primary LED digits, 2 secondary LED displays, 6 input/output alarm LEDs |
| Power supply | 24 VDC 150 mA |
| Dimensions (mm) | 97 × 49 × 158 |
| Weight | 0.5 kg |
All Aeroel XLS40 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the repeatability accuracy of the XLS40 model?
The XLS40 model achieves a repeatability accuracy of ±0.07 µm at best.
What is the measurement range of the XLS40 laser gauge?
The XLS40 measures from 0.06 mm up to 38 mm.
How many alarm output lines does the DM‑100 display provide?
The DM‑100 display provides four alarm output lines.
