advancedpower APT10078BLL APT10078SLL 1000V 14A 0.780W handbook

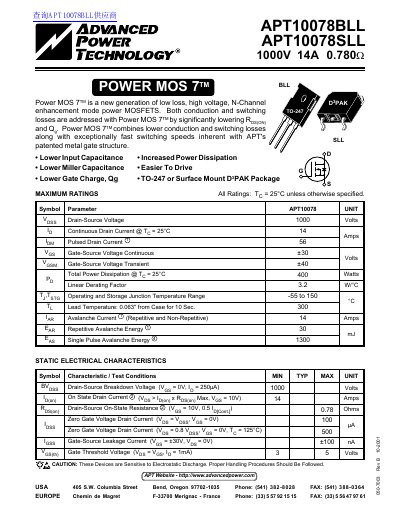

This document is a datasheet for the Advanced Power Power MOS 7™ series, specifically the APT10078BLL and APT10078SLL models. These are N-Channel enhancement mode power MOSFETs designed with low loss and high voltage capabilities. The devices feature a patented metal gate structure to achieve exceptionally fast switching speeds and lower conduction and switching losses compared to previous generations.
Read onlineadvancedpower APT10078 specifications
| Drain-Source Voltage | 1000 Volts |
|---|---|
| Continuous Drain Current | 14 Amps |
| Pulsed Drain Current | 56 Amps |
| Total Power Dissipation | 400 Watts |
| Operating Junction Temperature Range | -55 to 150 C |
| Drain-Source On-State Resistance | 0.78 Ohms |
| Package Types | TO-247 or Surface Mount D°PAK |
Source: advancedpower APT10078BLL APT10078SLL 1000V 14A 0.780W handbook
All advancedpower APT10078 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current for these MOSFETs at 25°C?
The device supports a continuous drain current of 14 Amps when the temperature is 25°C.
From: advancedpower APT10078BLL APT10078SLL 1000V 14A 0.780W handbook
What is the maximum total power dissipation rating at 25°C?
The total power dissipation is rated for a maximum of 400 Watts at 25°C.
From: advancedpower APT10078BLL APT10078SLL 1000V 14A 0.780W handbook
What is the maximum continuous drain current for this MOSFET at 25°C?
The device supports a continuous drain current of 14 amps when the junction temperature is 25°C.
From: advancedpower APT10078BFLL APT10078SFLL 1000V 14A 0.780W handbook
What is the maximum total power dissipation at a case temperature of 25°C?
The part can dissipate up to 400 watts when the case temperature is maintained at 25°C.
From: advancedpower APT10078BFLL APT10078SFLL 1000V 14A 0.780W handbook
