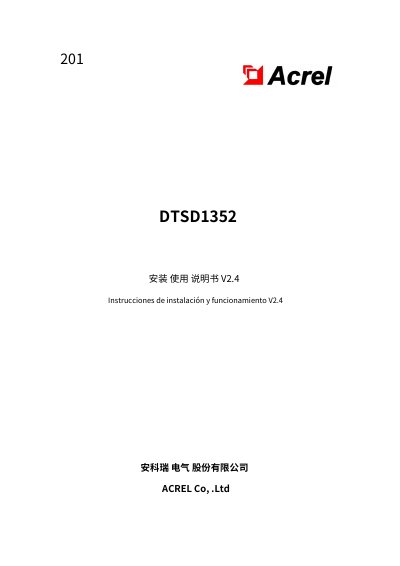

ACREL DTSD1352 Rail-Mounted Multi-Function Energy Meter Installation and Operation Manual
The ACREl DTSD1352 is a smart intelligent instrument designed for power systems, industrial enterprises, and public facilities to meet electricity statistics and management needs. It features high precision, a compact size, and easy installation. The device integrates the measurement of all electrical parameters with comprehensive energy metering and assessment management. This manual is written in Chinese.
Read onlineAcrel DTSD1352 specifications
| Accuracy Class (Active Energy) | 0.5S, 1 |
|---|---|
| Accuracy Class (Reactive Energy) | 2 |
| Communication Protocol | MODBUS-RTU |
Source: ACREL DTSD1352 Rail-Mounted Multi-Function Energy Meter Installation and Operation Manual
All Acrel DTSD1352 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What communication protocol does the DTSD1352 support?
The device supports MODBUS-RTU via an RS485 interface.
From: ACREL DTSD1352 Rail-Mounted Multi-Function Energy Meter Installation and Operation Manual
How many event records can be stored in SOE memory?
The meter stores up to 100 event records with timestamps down to the second.
From: ACREL DTSD1352 Rail-Mounted Multi-Function Energy Meter Installation and Operation Manual
What communication protocol does the DTSD1352 support?
The meter is fitted with an RS485 communication port and adapts to the MODBUS-RTU protocol.
From: ACREL DTSD1352 Rail-mounted Multi-function Energy Meter Installation and Operation Instruction
What are the accuracy classes for active and reactive energy?
The meter measures active energy with an accuracy class of 0.5S or 1, and reactive energy with an accuracy class of 2.
From: ACREL DTSD1352 Rail-mounted Multi-function Energy Meter Installation and Operation Instruction
How do I set the communication address of the meter?
Use the BUS communication settings; the address can be set between 1 and 247.
From: Acrel DTSF1352 / DTSD1352 Three-Phase Electronic Electricity Meter Installation and Use Manual
What do the three LED indicators on the panel mean?
The LEDs indicate Alarm, Phase sequence, and Loss voltage conditions.
From: Acrel DTSF1352 / DTSD1352 Three-Phase Electronic Electricity Meter Installation and Use Manual
