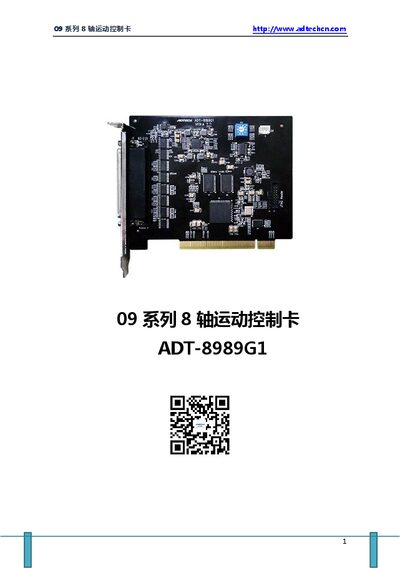

The manual provides product overview, installation, hardware connection, basic debugging and troubleshooting for the ADT-8989G1 8‑axis motion control card.
This document introduces the ADT-8989G1 8‑axis motion control card, a PCI‑bus based high‑performance controller designed for applications such as engraving, cutting, milling, punching and drilling. It details the hardware architecture, supported software environments, and typical industry uses.
The manual includes a quick‑start guide, hardware connection diagrams, step‑by‑step installation procedures, basic debugging instructions, and an appendix with common troubleshooting topics and safety precautions. This manual is written in Chinese.
| Maximum pulse output frequency | 5 MHz |
|---|---|
| Encoder feedback frequency | 4 Hz |
| Digital inputs | 48 (optically isolated) |
| Digital outputs | 34 (open‑collector) |
| PCI bus width | 32‑bit |
| Operating temperature range | 0 °C ~ 60 °C |
| Power output | +5 V DC, 500 mA |
The manual lists this as a common issue; check the connection, ensure the PCI slot is functional, and verify that the driver version matches the card.
Error code 9 indicates a WINIO initialization failure; verify that the WINIO driver is properly installed and that the system has the required permissions.
The card must be reliably grounded with a resistance less than 4 Ω, and a neutral (zero) line must not be used as a substitute for ground.
