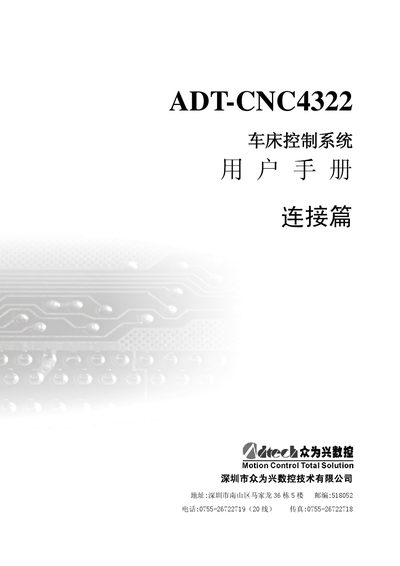

This manual provides interface diagrams, installation precautions, signal definitions, wiring, debugging and fault diagnosis for the ADT-CNC4322 CNC control…
The document describes the external interface layout and the required installation steps for the ADT‑CNC4322 control system. It includes detailed diagrams of the 15‑pin and 25‑pin D‑type connectors, wiring recommendations, and safety measures for the control cabinet.
Key sections cover signal definitions for motor drivers, spindle encoder, analog spindle, serial communication, input/output control, handheld box, origin and limit switches, tool change, axis zeroing, spindle direction, chuck control, external cycle start, and electrical connection diagrams, followed by debugging procedures and fault diagnosis guidelines. This manual is written in Chinese.
| Power supply voltage | 24 V DC |
|---|---|
| Internal power consumption | ≈ 5 W |
| Motor driver connector type | 15‑pin D‑type socket |
| Input/Output connector type | 25‑pin D‑type socket |
