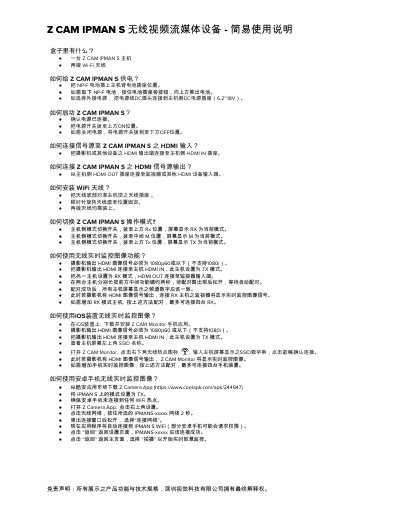

A quick start guide that shows how to power, operate, connect HDMI, install antennas, switch modes, and use wireless monitoring with iOS and Android for the…
The Z CAM IPMAN S is a compact wireless video streaming device that accepts HDMI input from a camera and outputs HDMI to a monitor. This guide provides the essential steps to get the device up and running, including power options, antenna installation, and mode selection.
It covers powering the unit with an NP‑F battery or external DC source, connecting HDMI sources and displays, switching between Rx, M, and Tx modes, and using the Z CAM Monitor app on iOS or Android for real‑time monitoring. Instructions for connecting the device to a Wi‑Fi router and changing Wi‑Fi channels are also included. This manual is written in Chinese.
| Power input voltage | 6.2 V – 18 V DC |
|---|---|
| Battery type | NP‑F battery |
| Maximum HDMI input resolution | 1080 p60 or lower |
| Maximum number of Rx units | 4 |
| Supported Wi‑Fi channels | 36, 40, 44, 48, 149, 153, 157, 161, 165 |
