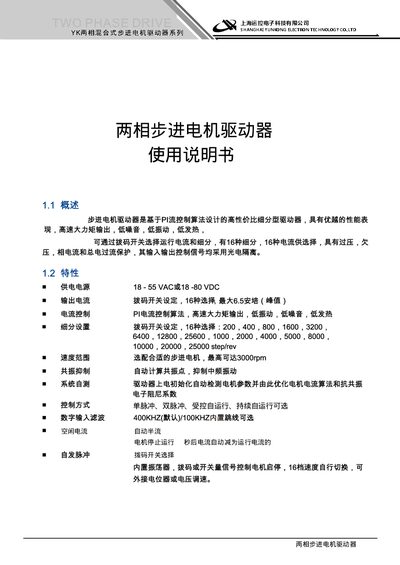

The Yunkong YK2MA608 manual provides specifications, wiring, settings, and operation modes for the two‑phase hybrid stepper motor driver.
The YK2MA608 is a two‑phase hybrid stepper motor driver produced by Shanghai Yunkong Electron Technology Co., Ltd. It supports a wide supply voltage range (AC 18‑55 V or DC 24‑80 V) and delivers up to 10 A of output current. The manual details the driver’s power connections, control signal pins, and DIP‑switch settings for current, microstepping, and speed.
Operating modes include single‑pulse, double‑pulse, controlled self‑run, and continuous self‑run, selectable via switches SW9 and SW10. LED indicators and error codes help diagnose status such as over‑current, over‑voltage, under‑voltage, or motor winding open. The document also includes wiring diagrams and configuration tables for various step and speed settings. This manual is written in Chinese.
| Supply Voltage | AC 18‑55 V or DC 24‑80 V |
|---|
It operates on either AC 18‑55 V or DC 24‑80 V.
A steady green LED means normal operation, flashing green means the motor is stopped, red‑green combos indicate over‑current, over‑voltage, under‑voltage, or other faults.
