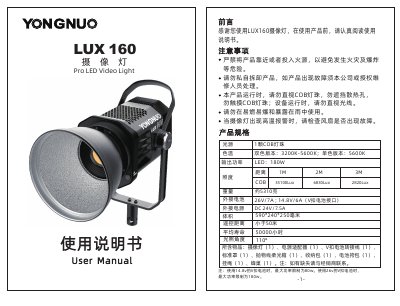

The Yongnuo LUX160 Pro LED video light user manual provides safety guidelines, setup steps, operation instructions, and technical specifications.
This manual introduces the LUX160 Pro video light, describing its components, safety precautions, and recommended usage. It explains how to power the unit, adjust color temperature and brightness, select channels, and use special effect modes.
Additional sections cover remote‑control operation, soft‑box attachment, working mode selection, display auto‑lock settings, Bluetooth and mobile‑app wireless control, and digital display mode. The document ends with technical specifications and warranty information. This manual is written in Chinese.
| Light source | 1 COB lamp bead |
|---|---|
| Color temperature | Bi‑color 3200K‑5600K; single 5600K |
| Output power | 180 W (LED) |
| Weight | ≈5310 g |
| Dimensions | 590 × 240 × 250 mm |
| Power input (adapter) | DC 24 V / 7.5 A |
| Maximum power (14.8 V battery) | 80 W |
| Maximum power (26 V battery) | 180 W |
| Average service life | ≈50 000 h |
The maximum output power is limited to 80 W.
Do not place the light near fire sources or expose it to flames.
