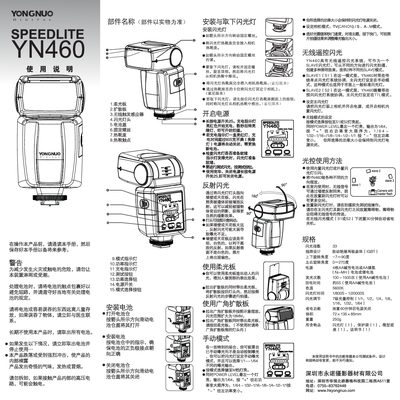

This manual explains how to safely use the YN460 flash, including important warnings such as keeping the device away from water, children, and removing batteries when not in use. It details battery installation steps, attaching and removing the flash head, and basic power‑on procedures.
The guide also covers the various shooting modes, including manual exposure, reflective flash, soft‑box and wide‑angle diffuser usage, and the wireless slave modes (S1 and S2). Technical specifications, power‑source options, and included accessories are listed at the end of the document. This manual is written in Chinese.
| Flash Index | 33 |
|---|---|
| Vertical Rotation Angle | -7~90° |
| Horizontal Rotation Angle | 0~270° |
| Power Source | 4×AA alkaline, AA Ni‑MH or Li‑ion batteries |
| Flash Count | 100‑1500 flashes |
| Recharge Time | ≈5 s |
| Color Temperature | 5600 K |
| Flash Duration | 1/800 s – 1/1200000 s |
| Power Levels | 7 levels |
| Power‑Save | Shuts off after 60 min idle |
| Dimensions | 72 × 135 × 85 mm |
| Weight | 250 g |
| Included Items | Flash, protective bag, mini base, manual |
Press the mode‑selection button to S1 or S2; the corresponding indicator lights will turn on, and you can adjust the power level with the +/‑ buttons.
Do not expose the flash to water, keep it away from children, remove batteries when not in use, and stop using it if it shows damage, strange odors, heat, or smoke.
The flash can be powered by four AA alkaline batteries, AA Ni‑MH rechargeable batteries, or lithium batteries.
