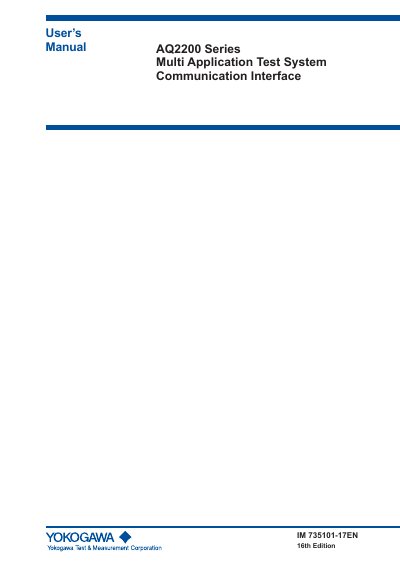

Yokogawa AQ2200 Series Communication Interface User's Manual

About this manual

This user's manual explains the communication interface features of the AQ2200 Series Multi Application Test System. It covers three main interfaces: USB, GP-IB (IEEE488), and Ethernet.

The document details the functions and specifications for each interface, including connection instructions via cables. It provides a comprehensive list of commands organized by group (such as ABORt, INITiate, SYSTem) along with their syntax and responses.

What's inside

• USB Interface
• GP-IB Interface
• Ethernet Interface
• Before Programming
• Commands
• Status Reports
• Sample Programs
• Troubleshooting

Frequently asked questions

How do I switch from remote mode to local mode?

Press the 'Local' soft key on the display screen.

What is the maximum power rating for the instrument's AC input?

The rear panel accepts a maximum of 170 VA at 50/60 Hz.

What is the acceptable AC voltage range for the instrument?

The instrument operates on an input of 100-240 V AC.
