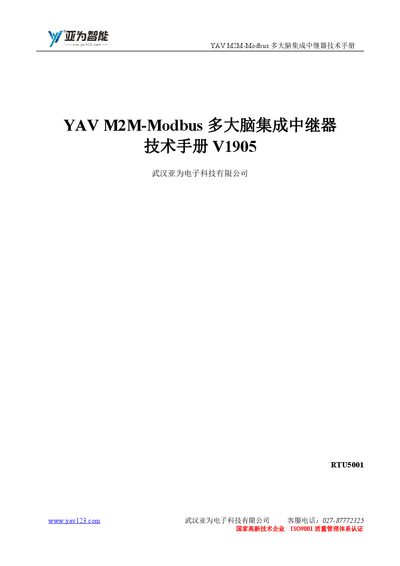

Technical manual that details features, specifications, hardware, communication protocols, installation and troubleshooting for the YAVM2M Modbus…
The YAVM2M is a DC7‑24 V powered repeater that consolidates Modbus device registers and forwards data using up to five transmission modes. It supports Modbus‑RTU, YAVIOT and custom protocols, and runs on Windows XP/7/8/10 with a simple, intuitive interface, suitable for industrial, power, environmental and agricultural applications.
The manual provides hardware specifications such as dimensions (125 × 90 × 25 mm), protection features (over‑current, surge, anti‑interference), environmental test results, and communication details (RS232/RS485 interfaces, baud rates 2400‑115200). It also includes application examples, safety guidelines, troubleshooting steps, and contact information for Yav support. This manual is written in Chinese.
| Power Supply Voltage | DC7~24 V |
|---|---|
| Power Consumption | 0.3 W |
| Operating Temperature | -30~70 °C |
| Storage Temperature | -40~80 °C |
| Dimensions (L×W×H) | 125 × 90 × 25 mm |
| RS232 Data Rate | 300‑460.8 kbps |
| RS485 Data Rate | 300‑230.4 kbps |
| Supported Baud Rates | 2400‑115200 |
| Supported Protocols | Modbus‑RTU, YAVIOT, custom strings |
| Maximum RS485 Connections | 32 |
It operates from a DC supply of 7 to 24 volts.
The unit can work in temperatures from –30 °C to 70 °C.
Up to 32 RS485 connections are supported.
