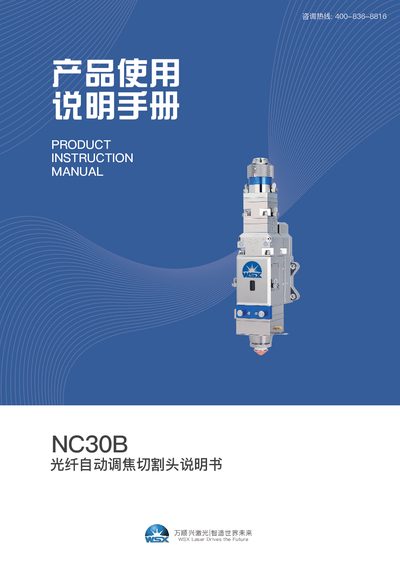

This manual provides installation, debugging, maintenance, and electrical interface instructions for the WSX Laser NC30B fiber automatic focusing cutting head.
The WSX Laser NC30B is an automatic focusing cutting head designed for high-power, large-area fiber laser cutting applications. It features a fully sealed internal structure to protect optical components from dust, uses imported motor-driven two-point centering for efficient piercing, and includes a drawer-style installation for easy replacement of protective lenses. The unit is compatible with various lasers equipped with QBH connectors. This manual is written in Chinese.
| Application | High-power large-area fiber laser cutting |
|---|---|
| Internal Structure | Fully sealed |
| Focusing Mechanism | Imported motor-driven |
| Centering Method | Two-point centering |
| Compatible Connector | QBH |
The manual jogging speed should be set to 1mm/s to ensure safety during limit switch testing.
Adjust the X/Y horizontal screws until the beam passes through the nozzle center, which ensures the best cutting effect.
