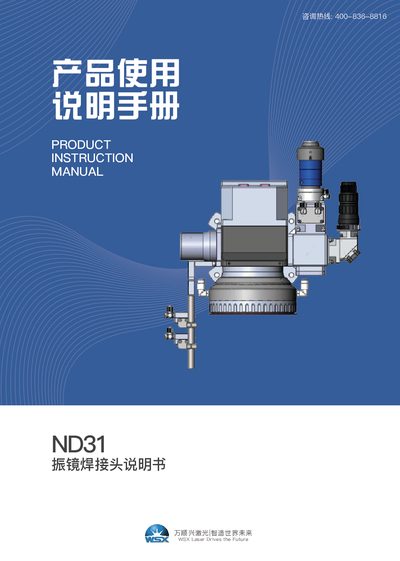

User manual for the WSX Laser ND31 galvo welding head, covering installation, operation, maintenance, and safety guidelines for laser welding applications.
This manual provides comprehensive instructions for the WSX Laser ND31 galvo welding head, a precision device designed for high-speed and high-accuracy laser welding. It details the product's structure, key functions, and the various components included, such as the QBH assembly, cooling system, and CCD components. The document emphasizes the importance of safety protocols when operating equipment involving high-power lasers and high-pressure systems. This manual is written in Chinese.
| Maximum Power | 3000W |
|---|---|
| Collimating Focal Length | 100mm |
| Focusing Focal Length | 400mm |
| Scanning Range | 210x210mm |
Users must use safety glasses that comply with DIN EN 207 and BGV B2 standards to protect against laser radiation.
Some components within the laser head can reach a maximum pressure of 2.5MPa, which is considered a high-pressure hazard.
The protective gas quality must comply with ISO 8573-1:2010, Class 2.4.3 standards to ensure no impurities like particles, water, or oil.
