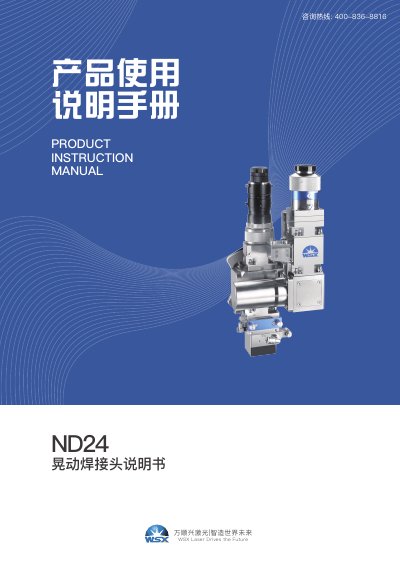

WSX Laser ND24 Oscillating Welding Head User Manual

About this manual

The WSX Laser ND24 is an economic and efficient oscillating welding head designed with strong advantages for aluminum alloy welding and medium-power welding applications. It features motor-driven X and Y axis vibrating mirrors to support various swing modes, allowing for irregular welds and larger gaps to significantly improve welding quality. The internal structure is fully sealed to prevent dust contamination of optical parts. This manual is written in Chinese.

What's inside

• Product Overview
• Technical Parameters
• Installation and Connection
• Safety Precautions
• Unboxing Inspection
• QBH Fiber Connection
• Water and Gas Connections
• CCD Component Connection
• Debugging
• Maintenance

Specifications

Frequently asked questions

What gas quality standard is required for the welding head?

The protective gas must meet ISO 8573-1:2010, Class 2.4.3 standards and contain no impurity particles, water, or oil.

What safety glasses are required for operation?

Users must use goggles that comply with DIN EN 207 and BGV B2 standards.

What is the maximum pressure in the laser head components?

The pressure of some components within the laser head can reach up to 2.5MPa.
