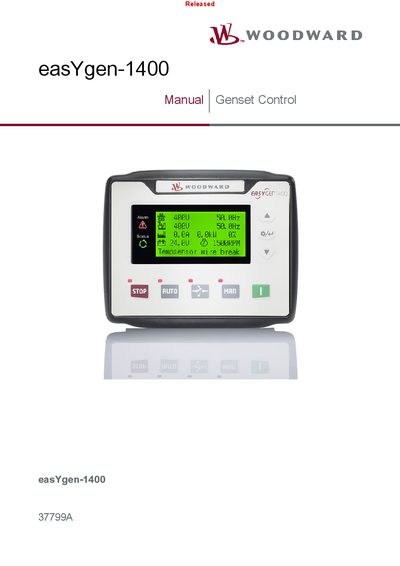

The Woodward easYgen-1400 Genset Control Manual provides installation, configuration, operation, and troubleshooting instructions for the control unit.
The easYgen-1400 is a control unit for engine‑generator system management, supporting start/stop, automatic mains failure handling, and protection functions. It is supplied with a USB service port, CAN interface, and a range of digital and analog inputs.
The manual is organized into sections covering general information, system overview, installation, configuration via front panel or ToolKit‑SC, operation modes, troubleshooting, technical specifications, and appendices such as alarms and glossary. It guides users through wiring, parameter setting, monitoring, and maintenance procedures.
| Operating Voltage | 8.0 V DC to 35.0 V DC (continuous) |
|---|---|
| Maximum Supply Voltage | Short‑time 80 V (5‑10 s) |
| Minimum Supply Voltage | 6.5 V |
| Power Consumption | < 3 W (standby ≤ 2 W) |
| Case Dimension | 135 mm × 110 mm × 44 mm |
| Protection Level | IP65 front, IP20 rear |
The unit operates from 8.0 V DC to 35.0 V DC continuously, with reverse‑polarity protection.
Access is provided through the front‑panel controls described in section 4.1.1 of the manual.
