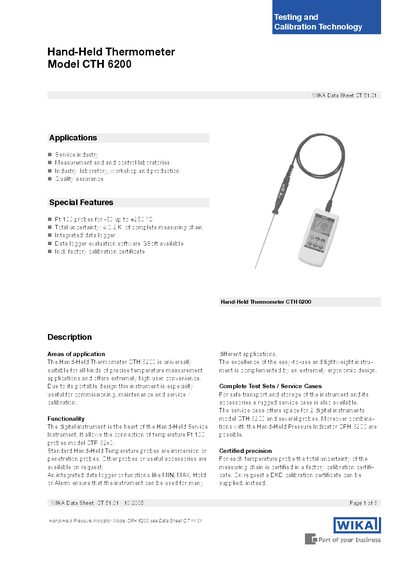

The WIKA CTH 6200 hand‑held thermometer datasheet provides specifications, features, accessories, and software details.
The Hand‑Held Thermometer CTH 6200 is a portable digital instrument for precise temperature measurement in testing, calibration, and service environments. It accepts Pt 100 (4‑wire) probes (immersion or penetration) and offers functions such as min/max, hold, alarm and an integrated data logger for up to 99 recordings.
The datasheet lists the full measuring range, uncertainty, power options, and interface details. An optional rugged service case, rechargeable battery, and GSoft data‑logger evaluation software are available for extended use and PC data analysis.
| Sensor type | Pt 100 (4‑wire) |
|---|---|
| Probe measuring range | -50 °C to +250 °C |
| Instrument measuring range | -99.99 °C to +99.99 °C (or -199.9 °C to +650 °C depending on probe) |
| Total measurement uncertainty | < 0.2 K |
| Power supply | 9 V zinc‑carbon battery (optional rechargeable or mains) |
| Power consumption | ≈ 1.25 mA |
| Display | 2 × 4 ½‑digit LCD |
| Weight | ≈ 160 g |
| Interface | RS‑232 (USB adapter on request) |
The probes cover -50 °C to +250 °C, while the instrument itself can display -99.99 °C to +99.99 °C (or -199.9 °C to +650 °C depending on the probe).
Yes, it has an integrated data logger that can store up to 99 individual recordings or up to 16 200 values in cyclic mode.
It is powered by a 9 V zinc‑carbon battery, with optional rechargeable 9 V battery or mains supply.
The instrument provides an RS‑232 serial interface, and a USB adapter can be supplied on request for PC connection.
