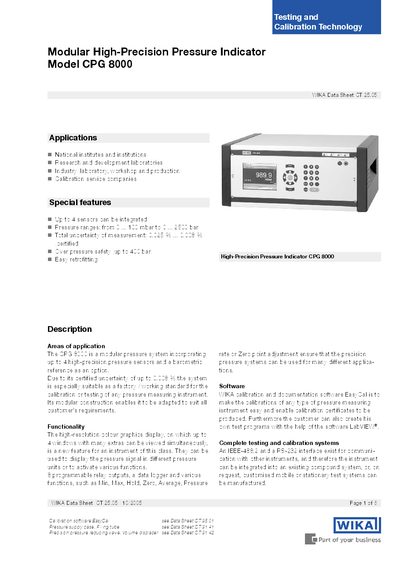

The WIKA CPG 8000 data sheet details its modular high‑precision pressure indicator features, specifications, and interfaces.
The CPG 8000 is a modular high‑precision pressure indicator that can integrate up to four pressure sensors and an optional barometric reference. It offers a high‑resolution colour graphics display, programmable relay outputs, a data logger, and functions such as Min, Max, Hold, Zero, Average, and pressure rate.
The instrument provides RS‑232 and IEEE‑488.2 communication interfaces, optional software EasyCal for calibration, and can be configured for desktop or plug‑in case versions. It is suited for national institutes, R&D labs, industry, and calibration service companies.
| Number of integratable sensors | 1 … 4 pcs. |
|---|---|
| Pressure range | 0 … 0.1 bar up to 0 … 2500 bar |
| Total uncertainty of measurement | 0.025 % FS up to 0.008 % IS |
| Pressure ports (standard) | up to 400 bar, 6 mm SWAGELOK® tube fitting |
| Overpressure protection | up to 400 bar safety valves, scaled to 120 % of FS |
| Display | TFT‑Colour graphics (320 × 240 px) |
| Power supply | 100‑240 VAC, 50/60 Hz, < 55 VA |
| Operating temperature | 15 … 35 °C |
| Weight | 10 … 17 kg (depending on sensors) |
| Ingress protection | IP31 front panel, IP41 overall |
The CPG 8000 can integrate up to four high‑precision pressure sensors.
It covers pressure ranges from 0 … 0.1 bar up to 0 … 2500 bar, depending on the sensor used.
The instrument includes RS‑232 and IEEE‑488.2 interfaces for communication with other devices.
The total uncertainty of measurement is 0.025 % of full scale up to 0.008 % of indicated span.
