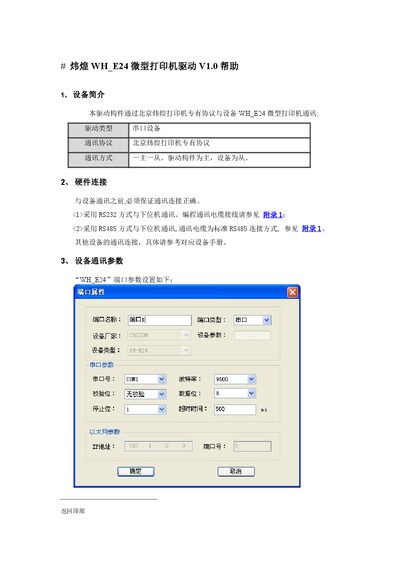

The WeiHuang WH_E24 micro printer driver help explains connection options, serial settings, command usage, and custom application development.
This guide describes how the WH_E24 micro printer communicates via WeiHuang's proprietary protocol. It supports both RS232 and RS485 interfaces, and requires matching serial parameters (9600‑8‑1‑N, device address 1).\n\nThe document lists the 47 supported commands, such as ESC6 for selecting character set 1, and explains how to set command registers and parameters in the host software. It also provides guidance for developing special applications or custom extensions when the supplied driver does not meet all needs. This manual is written in Chinese.
| Baud Rate | 9600 |
|---|---|
| Data Bits | 8 |
| Stop Bits | 1 |
| Parity | None |
| Device Address | 1 |
Create a short‑integer register named ESC6, set its value to 1, and the driver will send the ESC6 command.
Yes, you can extend the driver yourself or request a custom implementation from WeiHuang.
