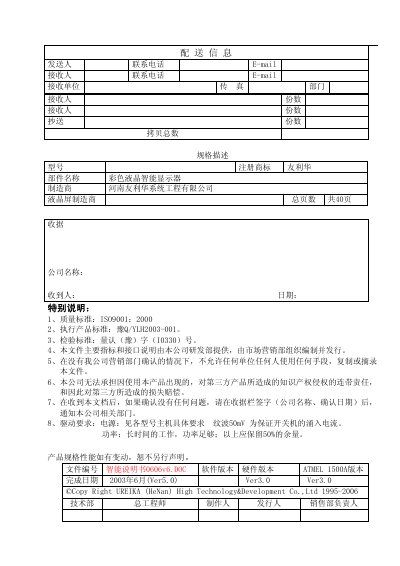

Ureika YD Series Color LCD Intelligent Display User Manual

This manual covers installation, communication interfaces, and command formats for Ureika's YD series color liquid crystal intelligent displays.

Brand: Ureika
Document type: User Manual
Language: Chinese
Pages: 40
File format: PDF
File size: 1.7 MB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: B78527CFD342CB27585FE701DEA605C2
PDF: Ureika YD Series Color LCD Intelligent Display User Manual PDF

About this manual

This user manual provides instructions for the Ureika YD series of color liquid crystal intelligent displays. The document details the product's performance indicators, including display resolution, viewing angles, brightness, and supported input voltages across various models such as the YD-411 through YD-1011. This manual is written in Chinese.

What's inside

Introduction
Performance Indicators
Communication Interfaces
Jumpers Settings
Installation Preparation
Serial Communication
Parallel Communication
Command Format
External Dimensions

Specifications

Display Colors (YD-411)	8 colors
Input Voltage (YD-613)	DC 10-20V
Viewing Angle (YD-411)	120 degrees
Pre-set Pages	256 pages

Frequently asked questions

What is the standard configuration for the number of preset pages?

The standard configuration for preset pages is 256.

What is the recommended power supply voltage for the YD-411 model?

The recommended input voltage for the YD-411 model is DC 12V.
