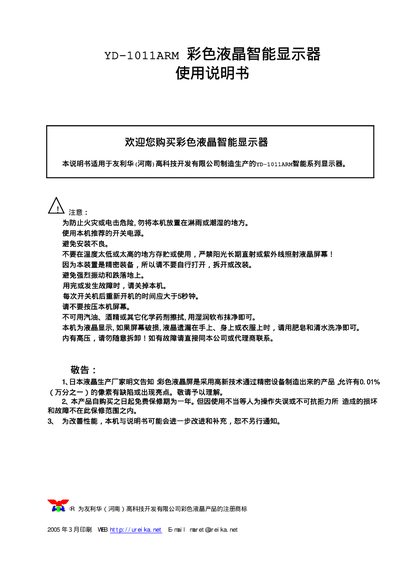

The Ureika YD-1011ARM TFT LCD Module User Manual provides specifications, wiring diagrams, and operation instructions for the 256×64 grayscale display.
The YD-1011ARM is a 256×64 grayscale TFT LCD module designed for embedded applications. It features a 219 mm × 282 mm × 42 mm mechanical size, a brightness of 120‑150 cd/m², contrast of 250‑350, and a viewing angle of 160°.
The module can be controlled via RS232C (9600‑115200 bps) or USB 1.0 interfaces and is powered by a 12 V DC supply. The manual includes command tables, ASCII character sets, flash memory programming instructions, and electrical connection diagrams. This manual is written in Chinese.
| Brightness | 120‑150 cd/m² |
|---|
The module measures 219 mm × 282 mm × 42 mm.
